1.1 - How Jenkins Works

Understanding Jenkins architecture and concepts

Source: https://www.jenkins.io/doc/book/managing/nodes/

Source glossary: https://www.jenkins.io/doc/book/glossary/

1. Jenkins Master Slave Architecture

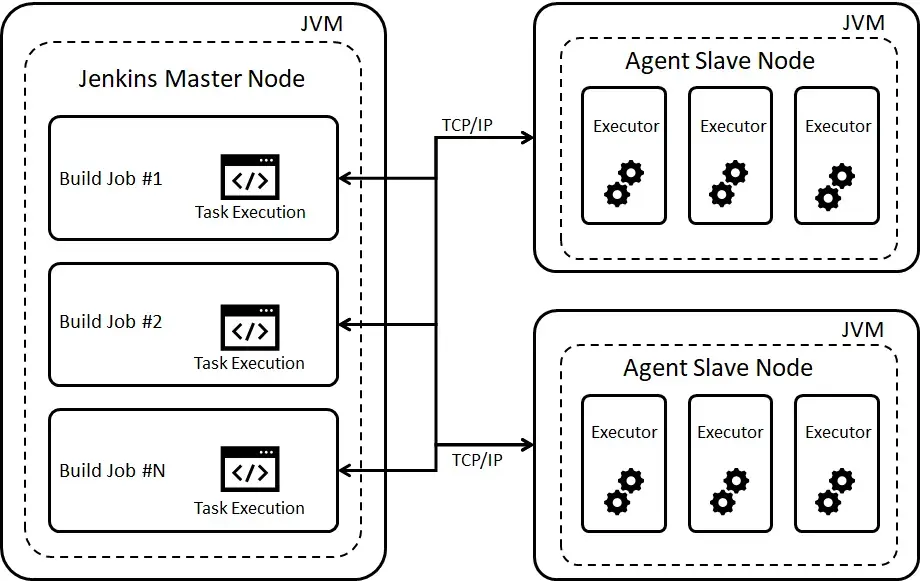

Jenkins Master Slave Architecture

The Jenkins controller is the master node which is able to launch jobs on different nodes (machines) directed by an Agent. The Agent can the use one or several executors to execute the job(s) depending on configuration.

Jenkins is using Master/Slave architecture with the following components:

1.1. Jenkins controller/Jenkins master node

The central, coordinating process which stores configuration, loads plugins, and renders the various user interfaces for Jenkins.

The Jenkins controller is the Jenkins service itself and is where Jenkins is installed. It is a webserver that also acts as a “brain” for deciding how, when and where to run tasks. Management tasks (configuration, authorization, and authentication) are executed on the controller, which serves HTTP requests. Files written when a Pipeline executes are written to the filesystem on the controller unless they are off-loaded to an artifact repository such as Nexus or Artifactory.

1.2. Nodes

A machine which is part of the Jenkins environment and capable of executing Pipelines or jobs. Both the Controller and Agents are considered to be Nodes.

Nodes are the “machines” on which build agents run. Jenkins monitors each attached node for disk space, free temp space, free swap, clock time/sync and response time. A node is taken offline if any of these values go outside the configured threshold.

The Jenkins controller itself runs on a special built-in node. It is possible to run agents and executors on this built-in node although this can degrade performance, reduce scalability of the Jenkins instance, and create serious security problems and is strongly discouraged, especially for production environments.

1.3. Agents

An agent is typically a machine, or container, which connects to a Jenkins controller and executes tasks when directed by the controller.

Agents manage the task execution on behalf of the Jenkins controller by using executors. An agent is actually a small (170KB single jar) Java client process that connects to a Jenkins controller and is assumed to be unreliable. An agent can use any operating system that supports Java. Tools required for builds and tests are installed on the node where the agent runs; they can be installed directly or in a container (Docker or Kubernetes). Each agent is effectively a process with its own PID (Process Identifier) on the host machine.

In practice, nodes and agents are essentially the same but it is good to remember that they are conceptually distinct.

1.4. Executors

A slot for execution of work defined by a Pipeline or job on a Node. A Node may have zero or more Executors configured which corresponds to how many concurrent Jobs or Pipelines are able to execute on that Node.

An executor is a slot for execution of tasks; effectively, it is a thread in the agent. The number of executors on a node defines the number of concurrent tasks that can be executed on that node at one time. In other words, this determines the number of concurrent Pipeline stages that can execute on that node at one time.

The proper number of executors per build node must be determined based on the resources available on the node and the resources required for the workload. When determining how many executors to run on a node, consider CPU and memory requirements as well as the amount of I/O and network activity:

  • One executor per node is the safest configuration.
  • One executor per CPU core may work well if the tasks being run are small.
  • Monitor I/O performance, CPU load, memory usage, and I/O throughput carefully when running multiple executors on a node.

1.5. Jobs

A user-configured description of work which Jenkins should perform, such as building a piece of software, etc.

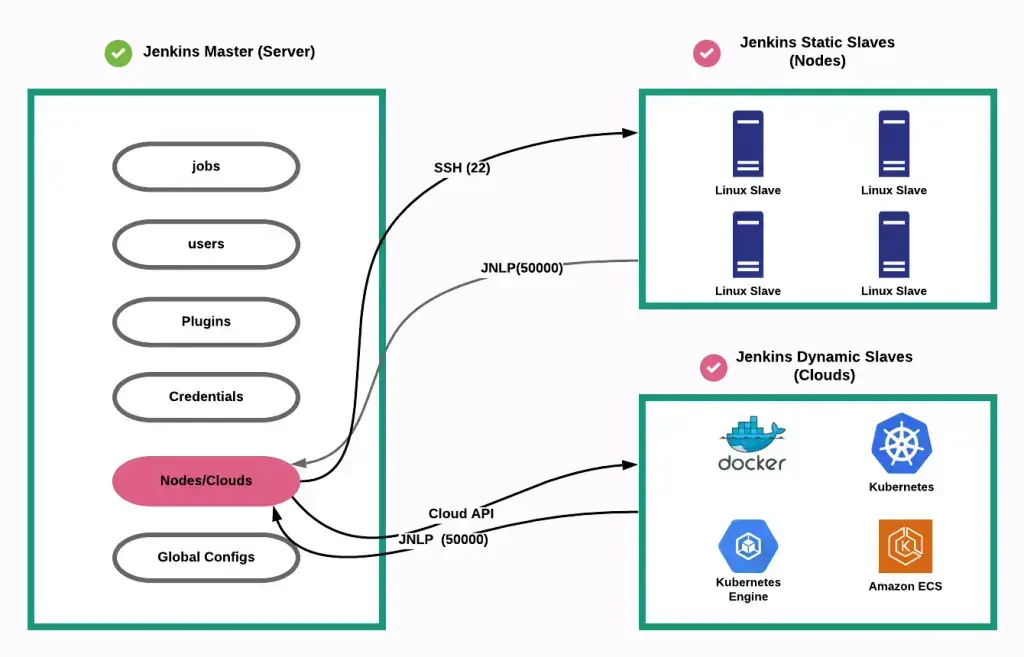

2. Jenkins dynamic node

Jenkins has static slave nodes and can trigger the generation of dynamic slave nodes

Jenkins Master/slave architecture

1.2 - Jenkins Pipelines

Declarative and scripted pipeline syntax

1. What is a pipeline ?

https://www.jenkins.io/doc/book/pipeline/

Jenkins Pipeline (or simply “Pipeline” with a capital “P”) is a suite of plugins which supports implementing and integrating continuous delivery pipelines into Jenkins.

A continuous delivery (CD) pipeline is an automated expression of your process for getting software from version control right through to your users and customers. Every change to your software (committed in source control) goes through a complex process on its way to being released. This process involves building the software in a reliable and repeatable manner, as well as progressing the built software (called a “build”) through multiple stages of testing and deployment.

Pipeline provides an extensible set of tools for modeling simple-to-complex delivery pipelines “as code” via the Pipeline domain-specific language (DSL) syntax. View footnote 1

The definition of a Jenkins Pipeline is written into a text file (called a Jenkinsfile) which in turn can be committed to a project’s source control repository. View footnote 2 This is the foundation of “Pipeline-as-code”; treating the CD pipeline a part of the application to be versioned and reviewed like any other code.

2. Pipeline creation via UI

it’s not recommended but it’s possible to create a pipeline via the UI.

There are several drawbacks:

  • no code revision
  • difficult to read, understand

3. Groovy

Scripted and declarative pipelines are using groovy language.

Checkout https://www.guru99.com/groovy-tutorial.html to have a quick overview of this derived language check Wikipedia

4. Difference between scripted pipeline (freestyle) and declarative pipeline syntax

What are the main differences ? Here are some of the most important things you should know:

  • Basically, declarative and scripted pipelines differ in terms of the programmatic approach. One uses a declarative programming model and the second uses an imperative programming mode.
  • Declarative pipelines break down stages into multiple steps, while in scripted pipelines there is no need for this. Example below

Declarative and Scripted Pipelines are constructed fundamentally differently. Declarative Pipeline is a more recent feature of Jenkins Pipeline which:

  • provides richer syntactical features over Scripted Pipeline syntax, and
  • is designed to make writing and reading Pipeline code easier.
  • By default automatically checkout stage

Many of the individual syntactical components (or “steps”) written into a Jenkinsfile, however, are common to both Declarative and Scripted Pipeline. Read more about how these two types of syntax differ in Pipeline concepts and Pipeline syntax overview.

5. Declarative pipeline example

Pipeline syntax documentation

 pipeline {
   agent {
     // executed on an executor with the label 'some-label'
     // or 'docker', the label normally specifies:
     // - the size of the machine to use
     //   (eg.: Docker-C5XLarge used for build that needs a powerful machine)
     // - the features you want in your machine
     //   (eg.: docker-base-ubuntu an image with docker command available)
     label "some-label"
   }

   stages {
     stage("foo") {
       steps {
         // variable assignment and Complex global
         // variables (with properties or methods)
         // can only be done in a script block
         script {
           foo = docker.image('ubuntu')
           env.bar = "${foo.imageName()}"
           echo "foo: ${foo.imageName()}"
         }
       }
     }
     stage("bar") {
       steps{
         echo "bar: ${env.bar}"
         echo "foo: ${foo.imageName()}"
       }
     }
   }
 }

6. Scripted pipeline example

Scripted pipelines permit a developer to inject code, while the declarative Jenkins pipeline doesn’t. should be avoided actually, try to use jenkins library instead

node {

  git url: 'https://github.com/jfrogdev/project-examples.git'

  // Get Artifactory server instance, defined in the Artifactory Plugin
  // administration page.
  def server = Artifactory.server "SERVER_ID"

  // Read the upload spec and upload files to Artifactory.
  def downloadSpec =
       '''{
       "files": [
         {
            "pattern": "libs-snapshot-local/*.zip",
            "target": "dependencies/",
            "props": "p1=v1;p2=v2"
         }
       ]
   }'''

  def buildInfo1 = server.download spec: downloadSpec

  // Read the upload spec which was downloaded from github.
  def uploadSpec =
     '''{
     "files": [
       {
          "pattern": "resources/Kermit.*",
          "target": "libs-snapshot-local",
          "props": "p1=v1;p2=v2"
       },
       {
          "pattern": "resources/Frogger.*",
          "target": "libs-snapshot-local"
       }
      ]
   }'''


  // Upload to Artifactory.
  def buildInfo2 = server.upload spec: uploadSpec

  // Merge the upload and download build-info objects.
  buildInfo1.append buildInfo2

  // Publish the build to Artifactory
  server.publishBuildInfo buildInfo1
}

7. Why Pipeline?

Jenkins is, fundamentally, an automation engine which supports a number of automation patterns. Pipeline adds a powerful set of automation tools onto Jenkins, supporting use cases that span from simple continuous integration to comprehensive CD pipelines. By modeling a series of related tasks, users can take advantage of the many features of Pipeline:

  • Code: Pipelines are implemented in code and typically checked into source control, giving teams the ability to edit, review, and iterate upon their delivery pipeline.
  • Durable: Pipelines can survive both planned and unplanned restarts of the Jenkins controller.
  • Pausable: Pipelines can optionally stop and wait for human input or approval before continuing the Pipeline run.
  • Versatile: Pipelines support complex real-world CD requirements, including the ability to fork/join, loop, and perform work in parallel.
  • Extensible: The Pipeline plugin supports custom extensions to its DSL see jenkins doc and multiple options for integration with other plugins.

While Jenkins has always allowed rudimentary forms of chaining Freestyle Jobs together to perform sequential tasks, see jenkins doc Pipeline makes this concept a first-class citizen in Jenkins.

More information on Official jenkins documentation - Pipeline

1.3 - Jenkins Library

Creating and using Jenkins shared libraries

1. What is a jenkins shared library ?

As Pipeline is adopted for more and more projects in an organization, common patterns are likely to emerge. Oftentimes it is useful to share parts of Pipelines between various projects to reduce redundancies and keep code “DRY”

for more information check pipeline shared libraries

2. Loading libraries dynamically

As of version 2.7 of the Pipeline: Shared Groovy Libraries plugin, there is a new option for loading (non-implicit) libraries in a script: a library step that loads a library dynamically, at any time during the build.

If you are only interested in using global variables/functions (from the vars/ directory), the syntax is quite simple:

library 'my-shared-library'

Thereafter, any global variables from that library will be accessible to the script.

3. jenkins library directory structure

The directory structure of a Shared Library repository is as follows:

(root)
+- src        # Groovy source files
|   +- org
|       +- foo
|           +- Bar.groovy  # for org.foo.Bar class
|
+- vars       # The vars directory hosts script
              # files that are exposed as a variable in Pipelines
|   +- foo.groovy          # for global 'foo' variable
|   +- foo.txt             # help for 'foo' variable
|
+- resources  # resource files (external libraries only)
|   +- org
|      +- foo
|         +- bar.json      # static helper data for org.foo.Bar

4. Jenkins library

remember that jenkins library code is executed on master node

if you want to execute code on the node, you need to use jenkinsExecutor

usage of jenkins executor

String credentialsId = 'babee6c1-14fe-4d90-9da0-ffa7068c69af'
def lib = library(
    identifier: '[email protected]',
    retriever: modernSCM([
        $class: 'GitSCMSource',
        remote: '[email protected]:fchastanet/jenkins-library.git',
        credentialsId: credentialsId
    ])
)
// this is the jenkinsExecutor instance
def docker = lib.fchastanet.Docker.new(this)

Then in the library, it is used like this:

def status = this.jenkinsExecutor.sh(
  script: "docker pull ${cacheTag}", returnStatus: true
)

5. Jenkins library structure

I remarked that a lot of code was duplicated between all my Jenkinsfiles so I created this library https://github.com/fchastanet/jenkins-library

(root)
+- doc    # markdown files automatically generated
          # from groovy files by generateDoc.sh
+- src    # Groovy source files
|   +- fchastanet
|       +- Cloudflare.groovy     # zonePurge
|       +- Docker.groovy         # getTagCompatibleFromBranch
                                 # pullBuildPushImage, ...
|       +- Git.groovy            # getRepoURL, getCommitSha,
                                 # getLastPusherEmail,
                                 # updateConditionalGithubCommitStatus
|       +- Kubernetes.groovy     # deployHelmChart, ...
|       +- Lint.groovy           # dockerLint,
                                 # transform lighthouse report
                                 # to Warnings NG issues format
|       +- Mail.groovy           # sendTeamsNotification,
                                 # sendConditionalEmail, ...
|       +- Utils.groovy          # deepMerge, isCollectionOrArray,
                                 # deleteDirAsRoot,
                                 # initAws (could be moved to Aws class)
+- vars   # The vars directory hosts script files that
          # are exposed as a variable in Pipelines
|   +- dockerPullBuildPush.groovy #
|   +- whenOrSkip.groovy          #

6. external resource usage

If you need you check out how I used this repository https://github.com/fchastanet/jenkins-library-resources in jenkins_library (Linter) that hosts some resources to parse result files.

1.4 - Jenkins Best Practices

Best practices and patterns for Jenkins and Jenkinsfiles

1. Pipeline best practices

Official Jenkins pipeline best practices

Summary:

  • Make sure to use Groovy code in Pipelines as glue
  • Externalize shell scripts from Jenkins Pipeline
    • for better jenkinsfile readability
    • in order to test the scripts isolated from jenkins
  • Avoid complex Groovy code in Pipelines
    • Groovy code always executes on controller which means using controller resources(memory and CPU)
      • it is not the case for shell scripts
    • eg1: prefer using jq inside shell script instead of groovy JsonSlurper
    • eg2: prefer calling curl instead of groovy http request
  • Reducing repetition of similar Pipeline steps (eg: one sh step instead of severals)
    • group similar steps together to avoid step creation/destruction overhead
  • Avoiding calls to Jenkins.getInstance

2. Shared library best practices

Official Jenkins shared libraries best practices

Summary:

  • Do not override built-in Pipeline steps
  • Avoiding large global variable declaration files
  • Avoiding very large shared libraries

And:

  • import jenkins library using a tag
    • like in docker build, npm package with package-lock.json or python pip lock, it’s advised to target a given version of the library
      • because some changes could break
  • The missing part: we miss on this library unit tests
    • but each pipeline is a kind of integration test
  • Because a pipeline can be resumed, your library’s classes should implement Serializable class and the following attribute has to be provided:
private static final long serialVersionUID = 1L

1.5 - Annotated Jenkinsfiles - Part 1

Detailed Jenkinsfile examples with annotations

Pipeline example

1. Simple one

This build is used to generate docker images used to build production code and launch phpunit tests. This pipeline is parameterized in the Jenkins UI directly with the parameters:

  • branch (git branch to use)
  • environment(select with 3 options: build, phpunit or all)
    • it would have been better to use simply 2 checkboxes phpunit/build
  • project_branch

Here the source code with inline comments:

Annotated jenkinsfile Expand source

// This method allows to convert the branch name to a docker image tag.
// This method is generally used by most of my jenkins pipelines, it's why it has been added to https://github.com/fchastanet/jenkins-library/blob/master/src/fchastanet/Docker.groovy#L31
def getTagCompatibleFromBranch(String branchName) {
    def String tag = branchName.toLowerCase()
    tag = tag.replaceAll("^origin/", "")
    return tag.replaceAll('/', '_')
}

// we declare here some variables that will be used in next stages
def String deploymentBranchTagCompatible = ''

pipeline {
    agent {
        node {
            // the pipeline is executed on a machine with docker daemon
            // available
            label 'docker-ubuntu'
        }
    }

    stages {
        stage ('checkout') {
            steps {
                // this command is actually not necessary because checkout is
                // done automatically when using declarative pipeline
                sh 'echo "pulling ... ${GIT_BRANCH#origin/}"'
                checkout scm

                // this particular build needs to access to some private github
                // repositories, so here we are copying the ssh key
                // it would be better to use new way of injecting ssh key
                // inside docker using sshagent
                // check https://stackoverflow.com/a/66897280
                withCredentials([
                    sshUserPrivateKey(
                      credentialsId: '855aad9f-1b1b-494c-aa7f-4de881c7f659',
                      keyFileVariable: 'sshKeyFile'
                   )
                ]) {
                    // best practice similar steps should be merged into one
                    sh 'rm -f ./phpunit/id_rsa'
                    sh 'rm -f ./build/id_rsa'
                    // here we are escaping '$' so the variable will be
                    // interpolated on the jenkins slave and not the jenkins
                    // master node instead of escaping, we could have used
                    // single quotes
                    sh "cp \$sshKeyFile ./phpunit/id_rsa"
                    sh "cp \$sshKeyFile ./build/id_rsa"
                }
                script {
                    // as actually scm is already done before executing the
                    // first step, this call could have been done during
                    // declaration of this variable
                    deploymentBranchTagCompatible = getTagCompatibleFromBranch(GIT_BRANCH)
                }
            }
        }
        stage("build Build env") {
            when {
                // the build can be launched with the parameter environment
                // defined in the configuration of the jenkins job, these
                // parameters could have been defined directly in the pipeline
                // see https://www.jenkins.io/doc/book/pipeline/syntax/#parameters
                expression { return params.environment != "phpunit"}
            }
            steps {
                // here we could have launched all this commands in the same sh
                // directive
                sh "docker build --build-arg BRANCH=${params.project_branch} -t build build"
                // use a constant for dockerRegistryId.dkr.ecr.eu-west-1.amazonaws.com
                sh "docker tag build dockerRegistryId.dkr.ecr.eu-west-1.amazonaws.com/build:${deploymentBranchTagCompatible}"
                sh "docker push dockerRegistryId.dkr.ecr.eu-west-1.amazonaws.com/build:${deploymentBranchTagCompatible}"
            }
        }
        stage("build PHPUnit env") {
            when {
                // it would have been cleaner to use
                // expression { return params.environment = "phpunit"}
                expression { return params.environment != "build"}
            }
            steps {
                sh "docker build --build-arg BRANCH=${params.project_branch} -t phpunit phpunit"
                sh "docker tag phpunit dockerRegistryId.dkr.ecr.eu-west-1.amazonaws.com/phpunit:${deploymentBranchTagCompatible}"
                sh "docker push dockerRegistryId.dkr.ecr.eu-west-1.amazonaws.com/phpunit:${deploymentBranchTagCompatible}"
            }
        }
    }
}

without seeing the Dockerfile files, we can advise :

  • to build these images in the same pipeline where build and phpunit are run
    • the images are built at the same time so we are sure that we are using the right version
  • apparently the docker build depend on the branch of the project, this should be avoided
  • ssh key is used in docker image, that could lead to a security issue as ssh key is still in the history of images layers even if it has been removed in subsequent layers, check https://stackoverflow.com/a/66897280 for information on how to use ssh-agent instead
  • we could use a single Dockerfile with 2 stages:
    • one stage to generate production image
    • one stage that inherits production stage, used to execute phpunit
    • it has the following advantages :
      • reduce the total image size because of the reuse different docker image layers
      • only one Dockerfile to maintain

2. More advanced and annotated Jenkinsfiles

1.6 - Annotated Jenkinsfiles - Part 2

More annotated Jenkinsfile examples

1. Introduction

This example is missing the use of parameters, jenkins library in order to reuse common code

This example uses :

  • post conditions https://www.jenkins.io/doc/book/pipeline/syntax/#post
  • github plugin to set commit status indicating the result of the build
  • usage of several jenkins plugins, you can check here to get the full list installed on your server and even generate code snippets by adding pipeline-syntax/ to your jenkins server url

But it misses:

check Pipeline syntax documentation

2. Annotated Jenkinsfile

// Define variables for QA environment
def String registry_id = 'awsAccountId'
def String registry_url = registry_id + '.dkr.ecr.us-east-1.amazonaws.com'
def String image_name = 'project'
def String image_fqdn_master = registry_url + '/' + image_name + ':master'
def String image_fqdn_current_branch = image_fqdn_master

// this method is used by several of my pipelines and has been added
// to jenkins_library <https://github.com/fchastanet/jenkins-library/blob/master/src/fchastanet/Git.groovy#L156>
void publishStatusToGithub(String status) {
  step([
    $class: "GitHubCommitStatusSetter",
    reposSource: [$class: "ManuallyEnteredRepositorySource", url: "https://github.com/fchastanet/project"],
    errorHandlers: [[$class: 'ShallowAnyErrorHandler']],
    statusResultSource: [
      $class: 'ConditionalStatusResultSource',
      results: [
        [$class: 'AnyBuildResult', state: status]
      ]
    ]
  ]);
}

pipeline {
  agent {
    node {
      // bad practice: try to indicate in your node labels, which feature it
      // includes for example, here we need docker, label could have been
      // 'eks-nonprod-docker'
      label 'eks-nonprod'
    }
  }
  stages {
    stage ('Checkout') {
      steps {
        // checkout is not necessary as it is automatically done
        checkout scm

        script {
          // 'wrap' allows to inject some useful variables like BUILD_USER,
          // BUILD_USER_FIRST_NAME
          // see https://www.jenkins.io/doc/pipeline/steps/build-user-vars-plugin/
          wrap([$class: 'BuildUser']) {
            def String displayName = "#${currentBuild.number}_${BRANCH}_${BUILD_USER}_${DEPLOYMENT}"

            // params could have been defined inside the pipeline directly
            // instead of defining them in jenkins build configuration
            if (params.DEPLOYMENT == 'staging') {
              displayName = "${displayName}_${INSTANCE}"
            }
            // next line allows to change the build name, check addHtmlBadge
            // plugin function for more advanced usage of this feature, you
            // check this jenkinsfile 05-02-Annotated-Jenkinsfiles.md
            currentBuild.displayName = displayName
          }
        }
      }
    }
    stage ('Run tests') {
      steps {
        // all these sh directives could have been merged into one
        // it is best to use a separated sh file that could take some parameters
        // as it is simpler to read and to eventually test separately
        sh 'docker build -t project-test "$PWD"/docker/test'
        sh 'cp "$PWD"/app/config/parameters.yml.dist "$PWD"/app/config/parameters.yml'
        // for better readability and if separated script is not possible, use
        // continuation line for better readability
        sh 'docker run -i --rm -v "$PWD":/var/www/html/ -w /var/www/html/ project-test  /bin/bash -c "composer install -a && ./bin/phpunit -c /var/www/html/app/phpunit.xml --coverage-html /var/www/html/var/logs/coverage/ --log-junit /var/www/html/var/logs/phpunit.xml  --coverage-clover /var/www/html/var/logs/clover_coverage.xml"'
      }
      // Run the steps in the post section regardless of the completion status
      // of the Pipeline’s or stage’s run.
      // see https://www.jenkins.io/doc/book/pipeline/syntax/#post
      post {
        always {
          // report unit test reports (unit test should generate result using
          // using junit format)
          junit 'var/logs/phpunit.xml'
          // generate coverage page from test results
          step([
            $class: 'CloverPublisher',
            cloverReportDir: 'var/logs/',
            cloverReportFileName: 'clover_coverage.xml'
          ])
          // publish html page with the result of the coverage
          publishHTML(
            target: [
              allowMissing: false,
              alwaysLinkToLastBuild: false,
              keepAll: true,
              reportDir: 'var/logs/coverage/',
              reportFiles: 'index.html',
              reportName: "Coverage Report"
            ]
          )
        }
      }
    }
    // this stage will be executed only if previous stage is successful
    stage('Build image') {
      when {
        // this stage is executed only if these conditions returns true
        expression {
          return
            params.DEPLOYMENT == "staging"
            || (
              params.DEPLOYMENT == "prod"
              && env.GIT_BRANCH == 'origin/master'
            )
        }
      }
      steps {
        script {
          // this code is used in most of the pipeline and has been centralized
          // in https://github.com/fchastanet/jenkins-library/blob/master/src/fchastanet/Git.groovy#L39
          env.IMAGE_TAG = env.GIT_COMMIT.substring(0, 7)
          // Update variable for production environment
          if ( params.DEPLOYMENT == 'prod' ) {
              registry_id = 'awsDockerRegistryId'
              registry_url = registry_id + '.dkr.ecr.eu-central-1.amazonaws.com'
              image_fqdn_master = registry_url + '/' + image_name + ':master'
          }

          image_fqdn_current_branch = registry_url + '/' + image_name + ':' + env.IMAGE_TAG
        }

        // As jenkins slave machine can be constructed on demand,
        // it doesn't always contains all docker image cache
        // here to avoid building docker image from scratch, we are trying to
        // pull an existing version of the docker image on docker registry
        // and then build using this image as cache, so all layers not updated
        // in Dockerfile will not be built again (gain of time)
        // It is again a recurrent usage in most of the pipelines
        // so the next 8 lines could be replaced by the call to this method
        // Docker
        // pullBuildPushImage https://github.com/fchastanet/jenkins-library/blob/master/src/fchastanet/Docker.groovy#L46

        // Pull the master from repository (|| true avoids errors if the image
        // hasn't been pushed before)
        sh "docker pull ${image_fqdn_master} || true"

        // Build the image using pulled image as cache
        // instead of using concatenation, it is more readable to use variable interpolation
        // Eg: "docker build --cache-from ${image_fqdn_master} -t ..."
        sh 'docker build \
            --cache-from ' + image_fqdn_master + ' \
            -t ' + image_name + ' \
            -f "$PWD/docker/prod/Dockerfile" \
            .'
      }
    }
    stage('Deploy image (Staging)') {
      when {
          expression { return params.DEPLOYMENT == "staging" }
      }

      steps {
        script {
          // Actually we should always push the image in order to be able to
          // feed the docker cache for next builds
          // Again the method Docker pullBuildPushImage https://github.com/fchastanet/jenkins-library/blob/master/src/fchastanet/Docker.groovy#L46
          // solves this issue and could be used instead of the next 6 lines
          // and "Push image (Prod)" stage

          // If building master, we should push the image with the tag master
          // to benefit from docker cache
          if ( env.GIT_BRANCH == 'origin/master' ) {
              sh label:"Tag the image as master",
                 script:"docker tag ${image_name} ${image_fqdn_master}"
              sh label:"Push the image as master",
                 script:"docker push ${image_fqdn_master}"
          }
        }

        sh label:"Tag the image", script:"docker tag ${image_name} ${image_fqdn_current_branch}"
        sh label:"Push the image", script:"docker push ${image_fqdn_current_branch}"
        // use variable interpolation instead of concatenation
        sh label:"Deploy on cluster", script:" \
          helm3 upgrade project-" + params.INSTANCE + " -i \
            --namespace project-" + params.INSTANCE + " \
            --create-namespace \
            --cleanup-on-fail \
            --atomic \
            -f helm/values_files/values-" + params.INSTANCE + ".yaml \
            --set deployment.php_container.image.pullPolicy=Always \
            --set image.tag=" + env.IMAGE_TAG + " \
            ./helm"
      }
    }
    stage('Push image (Prod)') {
      when {
        expression { return params.DEPLOYMENT == "prod" && env.GIT_BRANCH == 'origin/master'}
      }
      // The method Docker pullBuildPushImage https://github.com/fchastanet/jenkins-library/blob/master/src/fchastanet/Docker.groovy#L46
      // provides a generic way of managing the pull, build, push of the docker
      // images, by managing also a common way of tagging docker images
      steps {
        sh label:"Tag the image as master", script:"docker tag ${image_name} ${image_fqdn_current_branch}"
        sh label:"Push the image as master", script:"docker push ${image_fqdn_current_branch}"
      }
    }
  }
  post {
    always {
      // mark github commit as built
      publishStatusToGithub("${currentBuild.currentResult}")
    }
  }
}

This directive is really difficult to read and eventually debug it

sh 'docker run -i --rm -v "$PWD":/var/www/html/ -w /var/www/html/ project-test  /bin/bash -c "composer install -a && ./bin/phpunit -c /var/www/html/app/phpunit.xml --coverage-html /var/www/html/var/logs/coverage/ --log-junit /var/www/html/var/logs/phpunit.xml  --coverage-clover /var/www/html/var/logs/clover_coverage.xml"'

Another way to write previous directive is to:

  • use continuation line
  • avoid ‘&&’ as it can mask errors, use ‘;’ instead
  • use ‘set -o errexit’ to fail on first error
  • use ‘set -o pipefail’ to fail if eventual piped command is failing
  • ‘set -x’ allows to trace every command executed for better debugging

Here a possible refactoring:

sh ''''
  docker run -i --rm \
    -v "$PWD":/var/www/html/ \
    -w /var/www/html/ \
    project-test \
    /bin/bash -c "\
      set -x ;\
      set -o errexit ;\
      set -o pipefail ;\
      composer install -a ;\
      ./bin/phpunit \
        -c /var/www/html/app/phpunit.xml \
        --coverage-html /var/www/html/var/logs/coverage/ \
        --log-junit /var/www/html/var/logs/phpunit.xml  \
        --coverage-clover /var/www/html/var/logs/clover_coverage.xml
    "
'''

Note however it is best to use a separated sh file(s) that could take some parameters as it is simpler to read and to eventually test separately. Here a refactoring using a separated sh file:

runTests.sh

#!/bin/bash
set -x -o errexit -o pipefail

composer install -a

./bin/phpunit \
  -c /var/www/html/app/phpunit.xml \
  --coverage-html /var/www/html/var/logs/coverage/ \
  --log-junit /var/www/html/var/logs/phpunit.xml \
  --coverage-clover /var/www/html/var/logs/clover_coverage.xml

jenkinsRunTests.sh

#!/bin/bash
set -x -o errexit -o pipefail

docker build -t project-test "${PWD}/docker/test"

docker run -i --rm \
  -v "${PWD}:/var/www/html/" \
  -w /var/www/html/ \
  project-test \
  runTests.sh

Then the sh directive becomes simply

sh 'jenkinsRunTests.sh'

1.7 - Annotated Jenkinsfiles - Part 3

Additional Jenkinsfile pattern examples

1. Introduction

This build will:

  • pull/build/push docker image used to generate project files
  • lint
  • run Unit tests with coverage
  • build the SPA
  • run accessibility tests
  • build story book and deploy it
  • deploy spa on s3 bucket and refresh cloudflare cache

It allows to build for production and qa stages allowing different instances. Every build contains:

  • a summary of the build
    • git branch
    • git revision
    • target environment
  • all the available Urls:
    • spa url
    • storybook url

2. Annotated Jenkinsfile

// anonymized parameters
String credentialsId = 'jenkinsCredentialId'
def lib = library(
  identifier: '[email protected]',
  retriever: modernSCM([
    $class: 'GitSCMSource',
    remote: '[email protected]:fchastanet/jenkins-library.git',
    credentialsId: credentialsId
  ])
)
def docker = lib.fchastanet.Docker.new(this)
def git = lib.fchastanet.Git.new(this)
def mail = lib.fchastanet.Mail.new(this)
def utils = lib.fchastanet.Utils.new(this)
def cloudflare = lib.fchastanet.Cloudflare.new(this)

// anonymized parameters
String CLOUDFLARE_ZONE_ID = 'cloudflareZoneId'
String CLOUDFLARE_ZONE_ID_PROD = 'cloudflareZoneIdProd'
String REGISTRY_ID_QA  = 'dockerRegistryId'
String REACT_APP_PENDO_API_KEY = 'pendoApiKey'

String REGISTRY_QA  = REGISTRY_ID_QA + '.dkr.ecr.us-east-1.amazonaws.com'
String IMAGE_NAME_SPA = 'project-ui'
String STAGING_API_URL = 'https://api.host'
String INSTANCE_URL = "https://${params.instanceName}.host"
String REACT_APP_API_BASE_URL_PROD = 'https://ui.host'
String REACT_APP_PENDO_SOURCE_DOMAIN = 'https://cdn.eu.pendo.io'

String buildBucketPrefix
String S3_PUBLIC_URL = 'qa-spa.s3.amazonaws.com/project'
String S3_PROD_PUBLIC_URL = 'spa.s3.amazonaws.com/project'

List<String> instanceChoices = (1..20).collect { 'project' + it }

Map buildInfo = [
  apiUrl: '',
  storyBookAvailable: false,
  storyBookUrl: '',
  storyBookDocsUrl: '',
  spaAvailable: false,
  spaUrl: '',
  instanceName: '',
]

// add information on summary page
def addBuildInfo(buildInfo) {
  String deployInfo = ''
  if (buildInfo.spaAvailable) {
    String formatInstanceName = buildInfo.instanceName ?
      " (${buildInfo.instanceName})" : '';
    deployInfo += "<a href='${buildInfo.spaUrl}'>SPA${formatInstanceName}</a>"
  }
  if (buildInfo.storyBookAvailable) {
    deployInfo += " / <a href='${buildInfo.storyBookUrl}'>Storybook</a>"
    deployInfo += " / <a href='${buildInfo.storyBookDocsUrl}'>Storybook docs</a>"
  }
  String summaryHtml = """
    <b>branch : </b>${GIT_BRANCH}<br/>
    <b>revision : </b>${GIT_COMMIT}<br/>
    <b>target env : </b>${params.targetEnv}<br/>
    ${deployInfo}
  """
  removeHtmlBadges id: "htmlBadge${currentBuild.number}"
  addHtmlBadge html: summaryHtml, id: "htmlBadge${currentBuild.number}"
}

pipeline {
  agent {
    node {
      // this image has the features docker and lighthouse
      label 'docker-base-ubuntu-lighthouse'
    }
  }

  parameters {
    gitParameter(
      branchFilter: 'origin/(.*)',
      defaultValue: 'main',
      quickFilterEnabled: true,
      sortMode: 'ASCENDING_SMART',
      name: 'BRANCH',
      type: 'PT_BRANCH'
    )
    choice(
      name: 'targetEnv',
      choices: ['none', 'testing', 'production'],
      description: 'Where it should be deployed to? (Default: none - No deploy)'
    )
    booleanParam(
      name: 'buildStorybook',
      defaultValue: false,
      description: 'Build Storybook (will only apply if selected targetEnv is testing)'
    )
    choice(
      name: 'instanceName',
      choices: instanceChoices,
      description: 'Instance name to deploy the revision'
    )
  }

  stages {
    stage('Build SPA image') {
      steps {
        script {
          // set build status to pending on github commit
          step([$class: 'GitHubSetCommitStatusBuilder'])
          wrap([$class: 'BuildUser']) {
            currentBuild.displayName = "#${currentBuild.number}_${BRANCH}_${BUILD_USER}_${targetEnv}"
          }

          branchName = docker.getTagCompatibleFromBranch(env.GIT_BRANCH)
          shortSha = git.getShortCommitSha(env.GIT_BRANCH)

          if (params.targetEnv == 'production') {
            buildBucketPrefix = GIT_COMMIT
            buildInfo.apiUrl = REACT_APP_API_BASE_URL_PROD
            s3BaseUrl = 's3://project-spa/project'
          } else {
            buildBucketPrefix = params.instanceName
            buildInfo.instanceName = params.instanceName
            buildInfo.spaUrl = "${INSTANCE_URL}/index.html"
            buildInfo.apiUrl = STAGING_API_URL
            s3BaseUrl = 's3://project-qa-spa/project'
            buildInfo.storyBookUrl = "${INSTANCE_URL}/storybook/index.html"
            buildInfo.storyBookDocsUrl = "${INSTANCE_URL}/storybook-docs/index.html"
          }
          addBuildInfo(buildInfo)

          // Setup .env
          sh """
            set -x
            echo "REACT_APP_API_BASE_URL = '${buildInfo.apiUrl}'" > ./.env
            echo "REACT_APP_PENDO_SOURCE_DOMAIN = '${REACT_APP_PENDO_SOURCE_DOMAIN}'" >> ./.env
            echo "REACT_APP_PENDO_API_KEY = '${REACT_APP_PENDO_API_KEY}'" >> ./.env
          """

          withCredentials([
            sshUserPrivateKey(
              credentialsId: 'sshCredentialsId',
              keyFileVariable: 'sshKeyFile')
          ]) {
            docker.pullBuildPushImage(
              buildDirectory:   pwd(),
              // use safer way to inject ssh key during docker build
              buildArgs: "--ssh default=\$sshKeyFile --build-arg USER_ID=\$(id -u)",
              registryImageUrl: "${REGISTRY_QA}/${IMAGE_NAME_SPA}",
              tagPrefix:        "${IMAGE_NAME_SPA}:",
              localTagName:     "latest",
              tags: [
                shortSha,
                branchName
              ],
              pullTags: ['main']
            )
          }
        }
      }
    }

    stage('Linting') {
      steps {
        sh """
          docker run --rm \
            -v ${env.WORKSPACE}:/app \
            -v /app/node_modules \
            ${IMAGE_NAME_SPA} \
            npm run lint
        """
      }
    }

    stage('UT') {
      steps {
        script {
          sh """docker run --rm  \
            -v ${env.WORKSPACE}:/app \
            -v /app/node_modules \
            ${IMAGE_NAME_SPA} \
            npm run test:coverage -- --ci
          """

          junit 'output/junit.xml'

          // https://plugins.jenkins.io/clover/
          step([
            $class: 'CloverPublisher',
            cloverReportDir: 'output/coverage',
            cloverReportFileName: 'clover.xml',
            healthyTarget: [
              methodCoverage: 70,
              conditionalCoverage: 70,
              statementCoverage: 70
            ],
            // build will not fail but be set as unhealthy if coverage goes
            // below 60%
            unhealthyTarget: [
              methodCoverage: 60,
              conditionalCoverage: 60,
              statementCoverage: 60
            ],
            // build will fail if coverage goes below 50%
            failingTarget: [
              methodCoverage: 50,
              conditionalCoverage: 50,
              statementCoverage: 50
            ]
          ])
        }
      }
    }

    stage('Build SPA') {
      steps {
        script {
          sh """
            docker run --rm \
              -v ${env.WORKSPACE}:/app \
              -v /app/node_modules \
              ${IMAGE_NAME_SPA}
          """
        }
      }
    }

    stage('Accessibility tests') {
      steps {
        script {
          // the pa11y-ci could have been made available in the node image
          // to avoid installation each time, the build is launched
          sh '''
            sudo npm install -g serve pa11y-ci
            serve -s build > /dev/null 2>&1 &
            pa11y-ci --threshold 5 http://127.0.0.1:3000
          '''
        }
      }
    }

    stage('Build Storybook') {
      steps {
        whenOrSkip(
          params.targetEnv == 'testing'
          && params.buildStorybook == true
        ) {
          script {
            sh """
              docker run --rm \
                -v ${env.WORKSPACE}:/app \
                -v /app/node_modules \
                ${IMAGE_NAME_SPA} \
                sh -c 'npm run storybook:build -- --output-dir build/storybook \
                  && npm run storybook:build-docs -- --output-dir build/storybook-docs'
            """
            buildInfo.storyBookAvailable = true
          }
        }
      }
    }

    stage('Artifacts to S3') {
      steps {
        whenOrSkip(params.targetEnv != 'none') {
          script {
            if (params.targetEnv == 'production') {
              utils.initAws('arn:aws:iam::awsIamId:role/JenkinsSlave')
            }

            sh "aws s3 cp ${env.WORKSPACE}/build ${s3BaseUrl}/${buildBucketPrefix} --recursive --no-progress"
            sh "aws s3 cp ${env.WORKSPACE}/build ${s3BaseUrl}/project1 --recursive --no-progress"

            if (params.targetEnv == 'production') {
              echo 'project SPA packages have been pushed to production bucket.'
              echo '''You can refresh the production indexes with the CD
              production pipeline.'''
              cloudflare.zonePurge(CLOUDFLARE_ZONE_ID_PROD, [prefixes:[
                "${S3_PROD_PUBLIC_URL}/project1/"
              ]])
            } else {
              cloudflare.zonePurge(CLOUDFLARE_ZONE_ID, [prefixes:[
                "${S3_PUBLIC_URL}/${buildBucketPrefix}/"
              ]])

              buildInfo.spaAvailable = true
              publishChecks detailsURL: buildInfo.spaUrl,
                name: 'projectSpaUrl',
                title: 'project SPA url'
            }
            addBuildInfo(buildInfo)
          }
        }
      }
    }
  }

  post {
    always {
      script {
        git.updateConditionalGithubCommitStatus()
        mail.sendConditionalEmail()
      }
    }
  }
}

1.8 - Annotated Jenkinsfiles - Part 4

Complex Jenkinsfile scenarios

1. introduction

The project aim is to create a browser extension available on chrome and firefox

This build allows to:

  • lint the project using megalinter and phpstorm inspection
  • build necessary docker images
  • build firefox and chrome extensions
  • deploy firefox extension on s3 bucket
  • deploy chrome extension on google play store

2. Annotated Jenkinsfile

def credentialsId = 'jenkinsSshCredentialsId'
def lib = library(
    identifier: 'jenkins_library',
    retriever: modernSCM([
        $class: 'GitSCMSource',
        remote: '[email protected]:fchastanet/jenkins-library.git',
        credentialsId: credentialsId
    ])
)
def docker = lib.fchastanet.Docker.new(this)
def git = lib.fchastanet.Git.new(this)
def mail = lib.fchastanet.Mail.new(this)

def String deploymentBranchTagCompatible = ''
def String gitShortSha = ''
def String REGISTRY_URL = 'dockerRegistryId.dkr.ecr.eu-west-1.amazonaws.com'
def String ECR_BROWSER_EXTENSION_BUILD = 'browser_extension_lint'
def String BUILD_TAG = 'build'
def String PHPSTORM_TAG = 'phpstorm-inspections'
def String REFERENCE_JOB_NAME = 'Browser_extension_deploy'
def String FIREFOX_S3_BUCKET = 'browser-extensions'

// it would have been easier to use checkboxes to avoid 'both'/'none'
// complexity
def DEPLOY_CHROME = (params.targetStore == 'both' || params.targetStore == 'chrome')
def DEPLOY_FIREFOX = (params.targetStore == 'both' || params.targetStore == 'firefox')

pipeline {
  agent {
    node {
      label 'docker-base-ubuntu'
    }
  }
  parameters {
    gitParameter branchFilter: 'origin/(.*)',
      defaultValue: 'master',
      quickFilterEnabled: true,
      sortMode: 'ASCENDING_SMART',
      name: 'BRANCH',
      type: 'PT_BRANCH'

    choice (
      name: 'targetStore',
      choices: ['none', 'both', 'chrome', 'firefox'],
      description: 'Where it should be deployed to? (Default: none, has effect only on master branch)'
    )
  }
  environment {
    GOOGLE_CREDS = credentials('GoogleApiChromeExtension')
    GOOGLE_TOKEN = credentials('GoogleApiChromeExtensionCode')
    GOOGLE_APP_ID = 'googleAppId'
    // provided by https://addons.mozilla.org/en-US/developers/addon/api/key/
    FIREFOX_CREDS = credentials('MozillaApiFirefoxExtension')
    FIREFOX_APP_ID='{d4ce8a6f-675a-4f74-b2ea-7df130157ff4}'
  }

  stages {

    stage("Init") {
      steps {
        script {
          deploymentBranchTagCompatible = docker.getTagCompatibleFromBranch(env.GIT_BRANCH)
          gitShortSha = git.getShortCommitSha(env.GIT_BRANCH)
          echo "Branch ${env.GIT_BRANCH}"
          echo "Docker tag = ${deploymentBranchTagCompatible}"
          echo "git short sha = ${gitShortSha}"
        }
        sh 'echo StrictHostKeyChecking=no >> ~/.ssh/config'
      }
    }

    stage("Lint") {
      agent {
        docker {
          image 'megalinter/megalinter-javascript:v5'
          args "-u root -v ${WORKSPACE}:/tmp/lint --entrypoint=''"
          reuseNode true
        }
      }
      steps {
        sh 'npm install stylelint-config-rational-order'
        sh '/entrypoint.sh'
      }
    }

    stage("Build docker images") {
      steps {
        // whenOrSkip directive is defined in https://github.com/fchastanet/jenkins-library/blob/master/vars/whenOrSkip.groovy
        whenOrSkip(currentBuild.currentResult == "SUCCESS") {
          script {
            docker.pullBuildPushImage(
              buildDirectory:   'build',
              registryImageUrl: "${REGISTRY_URL}/${ECR_BROWSER_EXTENSION_BUILD}",
              tagPrefix:        "${ECR_BROWSER_EXTENSION_BUILD}:",
              tags: [
                "${BUILD_TAG}_${gitShortSha}",
                "${BUILD_TAG}_${deploymentBranchTagCompatible}",
              ],
              pullTags: ["${BUILD_TAG}_master"]
            )
          }
        }
      }
    }

    stage("Build firefox/chrome extensions") {
      steps {
        whenOrSkip(currentBuild.currentResult == "SUCCESS") {
          script {
              sh """
                docker run \
                  -v \$(pwd):/deploy \
                  --rm '${ECR_BROWSER_EXTENSION_BUILD}' \
                  /deploy/build/build-extensions.sh
              """
              // multiple git statuses can be set on a given commit
              // you can configure github to authorize pull request merge
              // based on the presence of one or more github statuses
              git.updateGithubCommitStatus("BUILD_OK")
          }
        }
      }
    }

    stage("Deploy extensions") {
      // deploy both extensions in parallel
      parallel {
        stage("Deploy chrome") {
          steps {
            whenOrSkip(currentBuild.currentResult == "SUCCESS" && DEPLOY_CHROME) {
              // do not fail the entire build if this stage fail
              // so firefox stage can be executed
              catchError(buildResult: 'SUCCESS', stageResult: 'FAILURE') {
                script {
                  // best practice: complex sh files have been created outside
                  // of this jenkinsfile deploy-chrome-extension.sh
                  sh """
                  docker run \
                      -v \$(pwd):/deploy \
                      -e APP_CREDS_USR='${GOOGLE_CREDS_USR}' \
                      -e APP_CREDS_PSW='${GOOGLE_CREDS_PSW}' \
                      -e APP_TOKEN='${GOOGLE_APP_TOKEN}' \
                      -e APP_ID='${GOOGLE_APP_ID}' \
                      --rm '${ECR_BROWSER_EXTENSION_BUILD}' \
                      /deploy/build/deploy-chrome-extension.sh
                  """
                  git.updateGithubCommitStatus("CHROME_DEPLOYED")
                }
              }
            }
          }
        }
        stage("Deploy firefox") {
          steps {
            whenOrSkip(currentBuild.currentResult == "SUCCESS" && DEPLOY_FIREFOX) {
              catchError(buildResult: 'SUCCESS', stageResult: 'FAILURE') {
                script {
                  // best practice: complex sh files have been created outside
                  // of this jenkinsfile deploy-firefox-extension.sh
                  sh """
                    docker run \
                      -v \$(pwd):/deploy \
                      -e FIREFOX_JWT_ISSUER='${FIREFOX_CREDS_USR}' \
                      -e FIREFOX_JWT_SECRET='${FIREFOX_CREDS_PSW}' \
                      -e FIREFOX_APP_ID='${FIREFOX_APP_ID}' \
                      --rm '${ECR_BROWSER_EXTENSION_BUILD}' \
                      /deploy/build/deploy-firefox-extension.sh
                  """
                  sh """
                    set -x
                    set -o errexit
                    extensionVersion="\$(jq -r .version < package.json)"
                    extensionFilename="tools-\${extensionVersion}-an+fx.xpi"

                    echo "Upload new extension \${extensionFilename} to s3 bucket ${FIREFOX_S3_BUCKET}"
                    aws s3 cp "\$(pwd)/packages/\${extensionFilename}" "s3://${FIREFOX_S3_BUCKET}"
                    aws s3api put-object-acl --bucket "${FIREFOX_S3_BUCKET}" --key "\${extensionFilename}" --acl public-read
                    # url is https://tools.s3.eu-west-1.amazonaws.com/tools-2.5.6-an%2Bfx.xpi

                    echo "Upload new version as current version"
                    aws s3 cp "\$(pwd)/packages/\${extensionFilename}" "s3://${FIREFOX_S3_BUCKET}/tools-an+fx.xpi"
                    aws s3api put-object-acl --bucket "${FIREFOX_S3_BUCKET}" --key "tools-an+fx.xpi" --acl public-read
                    # url is https://tools.s3.eu-west-1.amazonaws.com/tools-an%2Bfx.xpi

                    echo "Upload updates.json file"
                    aws s3 cp "\$(pwd)/packages/updates.json" "s3://${FIREFOX_S3_BUCKET}"
                    aws s3api put-object-acl --bucket "${FIREFOX_S3_BUCKET}" --key "updates.json" --acl public-read
                    # url is https://tools.s3.eu-west-1.amazonaws.com/updates.json
                  """
                  git.updateGithubCommitStatus("FIREFOX_DEPLOYED")
                }
              }
            }
          }
        }
      }
    }
  }
  post {
    always {
      script {
        archiveArtifacts artifacts: 'report/mega-linter.log'
        archiveArtifacts artifacts: 'report/linters_logs/*'
        archiveArtifacts artifacts: 'packages/*', fingerprint: true, allowEmptyArchive: true
        // send email to the builder and culprits of the current commit
        // culprits are the committers since the last commit successfully built
        mail.sendConditionalEmail()
        git.updateConditionalGithubCommitStatus()
      }
    }
    success {
      script {
        if (params.targetStore != 'none' && env.GIT_BRANCH == 'origin/master') {
          // send an email to a teams channel so every collaborators knows
          // when a production ready extension has been deployed
          mail.sendSuccessfulEmail('[email protected]')
        }
      }
    }
  }
}

1.9 - Annotated Jenkinsfiles - Part 5

Detailed Jenkinsfile examples with annotations

1. introduction

In jenkins library you can create your own directive that allows to generate jenkinsfile code. Here we will use this feature to generate a complete Jenkinsfile.

2. Annotated Jenkinsfile

library identifier: '[email protected]',
  retriever: modernSCM([
      $class: 'GitSCMSource',
      remote: '[email protected]:fchastanet/jenkins-library.git',
      credentialsId: 'jenkinsCredentialsId'
  ])

djangoApiPipeline repoUrl: '[email protected]:fchastanet/django_api_project.git',
                  imageName: 'django_api'

3. Annotated library custom directive

In the jenkins library just add a file named vars/djangoApiPipeline.groovy with the following content

#!/usr/bin/env groovy

def call(Map args) {
  // content of your pipeline
}

4. Annotated library custom directive djangoApiPipeline.groovy

#!/usr/bin/env groovy

def call(Map args) {

  def gitUtil = new Git(this)
  def mailUtil = new Mail(this)
  def dockerUtil = new Docker(this)
  def kubernetesUtil = new Kubernetes(this)
  def testUtil = new Tests(this)

  String workerLabelNonProd = args?.workerLabelNonProd ?: 'eks-nonprod'
  String workerLabelProd = args?.workerLabelProd ?: 'docker-ubuntu-prod-eks'
  String awsRegionNonProd = workerLabelNonProd == 'eks-nonprod' ? 'us-east-1' : 'eu-west-1'
  String awsRegionProd = 'eu-central-1'
  String regionName = params.targetEnv == 'prod' ? awsRegionProd : awsRegionNonProd
  String teamsEmail = args?.teamsEmail ?: '[email protected]'
  String helmDirectory = args?.helmDirectory ?: './helm'
  Boolean sendCortexMetrics = args?.sendCortexMetrics ?: false
  Boolean skipTests = args?.skipTests ?: false
  List environments = args?.environments ?: ['none', 'qa', 'prod']
  Short skipBuild = 0

  pipeline {
    agent {
      node {
        label params.targetEnv == 'prod' ? workerLabelProd : workerLabelNonProd
      }
    }

    parameters {
      gitParameter branchFilter: 'origin/(.*)',
                    defaultValue: 'main',
                    quickFilterEnabled: true,
                    sortMode: 'ASCENDING_SMART',
                    name: 'BRANCH',
                    type: 'PT_BRANCH'

      choice (
        name: 'targetEnv',
        choices: environments,
        description: 'Where it should be deployed to? (Default: none - No deploy)'
      )

      string (
        name: 'instance',
        defaultValue: '1',
        description: '''The instance ID to define which QA instance it should
        be deployed to (Will only apply if targetEnv is qa).'''
      )

      booleanParam(
        name: 'suspendCron',
        defaultValue: true,
        description: 'Suspend cron jobs scheduling'
      )

      choice (
        name: 'upStreamImage',
        choices: ['latest', 'beta'],
        description: '''Select beta to check if your build works with the
        future version of the upstream image'''
      )
    }

    stages {
      stage('Checkout from SCM') {
        steps {
          script {
            echo "Checking out from origin/${BRANCH} branch"
            gitUtil.branchCheckout(
              '',
              'babee6c1-14fe-4d90-9da0-ffa7068c69af',
              args.repoUrl,
              '${BRANCH}'
            )
            wrap([$class: 'BuildUser']) {
              def String displayName = "#${currentBuild.number}_${BRANCH}_${BUILD_USER}_${targetEnv}"

              if (params.targetEnv == 'qa' || params.targetEnv == 'qe') {
                displayName = "${displayName}_${instance}"
              }

              currentBuild.displayName = displayName
            }

            env.imageName = env.BUILD_TAG.toLowerCase()
            env.buildDirectory = args?.buildDirectory ?
              args.buildDirectory + "/" : ""
            env.runCoverage = args?.runCoverage
            env.shortSha = gitUtil.getShortCommitSha(env.GIT_BRANCH)
            skipBuild = dockerUtil.checkImage(args.imageName, shortSha)
          }
        }
      }

      stage('Build') {
        when {
          expression { return skipBuild != 0 }
        }
        steps {
          script {
            String registryUrl = 'dockerRegistryId.dkr.ecr.' +
              awsRegionNonProd + '.amazonaws.com'
            String buildDirectory = args?.buildDirectory ?: pwd()

            if (params.targetEnv == "prod") {
              registryUrl = 'dockerRegistryId.dkr.ecr.' + awsRegionProd + '.amazonaws.com'
            }

            dockerUtil.pullBuildImage(
              registryImageUrl: "${registryUrl}/${args.imageName}",
              pullTags: [
                "${params.targetEnv}"
              ],
              buildDirectory: "${buildDirectory}",
              buildArgs: "--build-arg UPSTREAM_VERSION=${params.upStreamImage}",
              tagPrefix: "${env.imageName}:",
              tags: [
                "${env.shortSha}"
              ]
            )
          }
        }
      }

      stage('Test') {
        when {
          expression { return skipBuild != 0 && skipTests == false }
        }
        steps {
          script {
            testUtil.execTests(args.imageName)
          }
        }
      }
      stage('Push') {
        when {
          expression { return params.targetEnv != 'none' }
        }
        steps {
          script {
            //pipeline execution starting time for CD part
            Map argsMap = [:]

            if (params.targetEnv == "prod") {
              registryUrl = 'registryIdProd.dkr.ecr.' +
                awsRegionProd + '.amazonaws.com'
            } else {
              registryUrl = 'registryIdNonProd.dkr.ecr.' +
                awsRegionNonProd + '.amazonaws.com'
            }

            argsMap = [
              registryImageUrl: "${registryUrl}/${args.imageName}",
              pullTags: [
                "${env.shortSha}",
              ],
              tagPrefix: "${registryUrl}/${args.imageName}:",
              localTagName: "${env.shortSha}",
              tags: [
                "${params.targetEnv}"
              ]
            ]

            if (skipBuild == 0) {
              dockerUtil.promoteTag(argsMap)
            } else {
              argsMap.remove("pullTags")
              argsMap.put("tagPrefix", "${env.imageName}:")
              argsMap.put("tags", ["${env.shortSha}","${params.targetEnv}"])
              dockerUtil.tagPushImage(argsMap)
            }
          }
        }
      }
      stage("Deploy to Kubernetes") {
        when {
          expression { return params.targetEnv != 'none' }
        }
        steps {
          script {
            if (params.targetEnv == 'prod') {
              // not sure it is a good practice as it forces the operator to
              // wait for build to reach this stage
              timeout(time: 300, unit: "SECONDS") {
                input(
                  message: """Do you want go ahead with ${env.shortSha}
                  image tag for prod helm deploy?""",
                  ok: 'Yes'
                )
              }
            }
            CHART_NAME = (args.imageName).contains("_") ?
              (args.imageName).replaceAll("_", "-") :
              (args.imageName)
            if (params.targetEnv == 'qa' || params.targetEnv == 'qe') {
              helmValueFilePath = "${helmDirectory}" +
                "/value_files/values-" + params.targetEnv +
                params.instance + ".yaml"
              NAMESPACE = "${CHART_NAME}-" + params.targetEnv + params.instance
            } else {
              helmValueFilePath = "${helmDirectory}" +
                "/value_files/values-" + params.targetEnv + ".yaml"
              NAMESPACE = "${CHART_NAME}-" + params.targetEnv
            }
            ingressUrl = kubernetesUtil.getIngressUrl(helmValueFilePath)
            echo "Deploying into k8s.."
            echo "Helm release: ${CHART_NAME}"
            echo "Target env: ${params.targetEnv}"
            echo "Url: ${ingressUrl}"
            echo "K8s namespace: ${NAMESPACE}"
            kubernetesUtil.deployHelmChart(
              chartName: CHART_NAME,
              nameSpace: NAMESPACE,
              imageTag: "${env.shortSha}",
              helmDirectory: "${helmDirectory}",
              helmValueFilePath: helmValueFilePath
            )
          }
        }
      }
    }
    post {
      always {
        script {
          gitUtil.updateGithubCommitStatus("${currentBuild.currentResult}", "${env.WORKSPACE}")
          mailUtil.sendConditionalEmail()
          if (params.targetEnv == 'prod') {
              mailUtil.sendTeamsNotification(teamsEmail)
          }
        }
      }
    }
  }
}

5. Final thoughts about this technique

This technique is really useful when you have a lot of similar projects reusing over and over the same pipeline. It allows:

  • code reuse
  • avoid duplicated code
  • easier maintenance

However it has the following drawbacks:

  • some projects using this generic pipeline could have specific needs
    • eg 1: not the same way to run unit tests, to overcome that issue the method testUtil.execTests is used allowing to run a specific sh file if it exists
    • eg 2: more complex way to launch docker environment
  • be careful, when you upgrade this jenkinsfile as all the projects using it will be upgraded at once
    • it could be seen as an advantage, but it is also a big risk as it could impact all the prod environment at once
    • to overcome that issue I suggest to use library versioning when using the jenkins library in your project pipeline Eg: check Annotated Jenkinsfile @v1.0 when cloning library project
  • I highly suggest to use a unit test framework of the library to avoid at most bad surprises

In conclusion, I’m still not sure it is a best practice to generate pipelines like this.

1.10 - Jenkins Recipes and Tips

Useful recipes and tips for Jenkins and Jenkinsfiles

1. Jenkins snippet generator

Use jenkins snippet generator by adding /pipeline-syntax/ to your jenkins pipeline. to allow you to generate jenkins pipeline code easily with inline doc. It also list the available variables.

jenkins snippet generator

2. Declarative pipeline allows you to restart a build from a given stage

restart from stage

3. Replay a pipeline

Replaying a pipeline allows you to update your jenkinsfile before replaying the pipeline, easier debugging !

replay a pipeline

4. VS code Jenkinsfile validation

Please follow this documentation enable jenkins pipeline linter in vscode

5. How to chain pipelines ?

Simply use the build directive followed by the name of the build to launch

build 'OtherBuild'

6. Viewing pipelines hierarchy

The downstream-buildview plugin allows to view the full chain of dependent builds.

Jenkins Downstream Build Pipeline Visualization

2 - How to Write PlantUML

Comprehensive guide to writing PlantUML diagrams, including syntax, best practices, and examples.

1. What You’ll Learn

2. Getting Started

Select a guide from the sidebar to begin.

Articles in this section

TitleDescriptionUpdated
Reusable PlantUML Components: Modular Diagram Architecture and Shared StylingLearn how to create reusable PlantUML components for modular diagram architecture and shared styling across multiple diagrams.2026-05-10 23:42:08 +0200 +0200

2.1 - Reusable PlantUML Components: Modular Diagram Architecture and Shared Styling

Learn how to create reusable PlantUML components for modular diagram architecture and shared styling across multiple diagrams.

Today, we will explore how to create reusable PlantUML components for modular diagram architecture and shared styling across multiple diagrams. This approach allows you to maintain consistency and reduce duplication in your PlantUML diagrams.

1. Database ERD Examples: Music Domain

The database/ directory contains a complete example of MongoDB Entity Relationship Diagrams modeling a music streaming recommendation system. These examples demonstrate:

  • Modular diagram architecture with reusable components
  • Subsection inclusion using !includesub and !startsub
  • Shared styling across multiple diagrams
  • JSON data structures within PlantUML diagrams

1.1. Entity Collections

The music database example includes the following collections:

FileDescription
music-db-Playlists_Collections_ERD.pumlPlaylist catalog and published playlist instances
music-db-Moods_Collections_ERD.pumlMusic mood taxonomy and user taste preferences
music-db-Suggestions_Collections_ERD.pumlPlaylist suggestion engine based on user moods
music-db-Logs.pumlAPI usage logs for AI-generated playlist metadata
music-db-All_collections.pumlMaster diagram combining all collections
db_theme_standard.pumlReusable theme providing consistent styling

1.2. Business Logic Flow

  1. Playlists are tagged with moods (e.g., “energetic”, “chill”, “melancholic”)
  2. Users express music preferences through user_tastes (preferred moods)
  3. The suggestion engine matches playlists to users based on mood similarity
  4. Vector embeddings enable semantic matching between user tastes and playlist moods

1.3. Complete Database Schema Overview

The following diagram shows all collections and their relationships:

Music Database - All Collections

View source on GitHub

View PlantUML source code
@startuml
!pragma layout smetana
!include content/docs/howtos/how-to-write-plantuml/database/db_theme_standard.puml
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_MODEL
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_MODEL_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_INSTANCES_MODEL
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_INSTANCES_MODEL_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Moods_Collections_ERD.puml!MODEL_USER_TASTES
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Moods_Collections_ERD.puml!MODEL_USER_TASTES_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Moods_Collections_ERD.puml!MODEL_MOOD
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Moods_Collections_ERD.puml!MODEL_MOOD_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Suggestions_Collections_ERD.puml!MODEL_PENDING_USER_SUGGESTION
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Suggestions_Collections_ERD.puml!MODEL_PENDING_USER_SUGGESTION_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Suggestions_Collections_ERD.puml!MODEL_USER_SUGGESTION
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Suggestions_Collections_ERD.puml!MODEL_USER_SUGGESTION_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Logs.puml!MODEL_MUSIC_API_LOGS
@enduml

2. Reusable Styling with db_theme_standard.puml

The db_theme_standard.puml file is a standalone, reusable theme definition that ensures visual consistency across all database diagrams.

2.1. Why Separate Styling?

Separating styling from content provides several benefits:

  • Single source of truth for visual standards
  • Easy updates - change once, apply everywhere
  • Reduced duplication - no need to copy/paste styling rules
  • Clear separation between diagram content and presentation

2.2. What It Defines

The reusable theme file defines:

!include content/docs/howtos/how-to-write-plantuml/database/db_theme_standard.puml
  • Visual styling: fonts, colors, line styles, rounded corners
  • Notation macros: PK (primary key), FK (foreign key), IDX (index)
  • Index types: UNIQUE, SPARSE, UNIQUE_SPARSE
  • Legend symbols: explaining all notation used in diagrams

Here’s what the theme styling looks like:

Database Theme Standard

View source on GitHub

View theme source code
@startuml
' ==============================================
' MongoDB Database Diagram Standard Theme
' ==============================================
' This is a REUSABLE style definition file that provides:
' - Consistent visual styling across all database diagrams
' - Standard notation for database elements (PK, FK, indexes)
' - Color-coded legends for different entity types
' - Icon definitions for database constraints
'
' USAGE: Include this file in any database ERD diagram:
'   !include path/to/db_theme_standard.puml
'
' This ensures all diagrams share the same professional appearance
' and use consistent notation conventions.
' ==============================================

skinparam {
    defaultFontName Arial
    defaultFontSize 12
    roundCorner 8
    packageStyle rectangle
    linetype ortho
    BackgroundColor #FFF
    shadowing false
    ArrowColor #555555
    ArrowThickness 2

    entity {
        Margin 20
    }
}

!define ENTITY entity
!define PK <&key><u><b>
!define FK <u><i>
!define IDX <&magnifying-glass>
!define UNIQUE <u><&magnifying-glass><<unique>>
!define SPARSE <i><&magnifying-glass><<sparse>>
!define UNIQUE_SPARSE <u><i><&magnifying-glass><<unique_sparse>>
!define DETAILS -

legend
|= |= Type |
|<back:#FF0000>   </back>| Type A class |
|<back:#00FF00>   </back>| Type B class |
|<back:blue>   </back>| Type C class |
endlegend

legend left
  |= notation |= meaning|
  | <img : https://cdn-0.plantuml.com/public-field.png{scale=1.4}>(+)  | Indexed column  |
  | <img : https://cdn-0.plantuml.com/private-field.png{scale=1.4}>(-) | details |
  | ""<&key>"" | Primary Key |
  | ""<u><i>column"" | Foreign Key |
  | ""<&magnifying-glass>"" | Standard Index |
  | UNIQUE | Unique Index |
  | SPARSE | Sparse Index |
  | UNIQUE_SPARSE | Unique & Sparse Index |
endlegend

@enduml

2.3. Usage Pattern

Every database ERD diagram includes this file:

@startuml
!include content/docs/howtos/how-to-write-plantuml/database/db_theme_standard.puml

ENTITY users {
  PK _id : ObjectId
  --
  + IDX email : string
}
@enduml

This pattern ensures all diagrams share professional, consistent notation.

3. Modular Composition with !startsub and !includesub

PlantUML supports subsection extraction, allowing you to define reusable diagram fragments that can be included selectively in other diagrams.

3.1. Defining Subsections: !startsub

Use !startsub and !endsub to mark reusable sections:

' Define a reusable playlist entity
!startsub PLAYLIST_MODEL
ENTITY playlists {
  PK _id : ObjectId
  + IDX reference_code : string
}
!endsub

' Define additional detail fields
!startsub PLAYLIST_MODEL_DETAILS
ENTITY playlists {
  # moods : ObjectId[]
  # title : string
  - created_at : datetime
}
!endsub

3.2. Including Subsections: !includesub

Use !includesub to import specific subsections into another diagram:

@startuml
!include db_theme_standard.puml

' Include only the core playlist model (without details)
!includesub music-db-Playlists_Collections_ERD.puml!PLAYLIST_MODEL

@enduml

3.3. Benefits of Subsection Inclusion

  1. Selective composition - include only what you need
  2. Multiple levels of detail - show high-level or detailed views
  3. Avoid duplication - define entities once, reuse everywhere
  4. Maintainability - update the source, all diagrams reflect changes

3.4. Example: Cross-Diagram References

In music-db-Moods_Collections_ERD.puml:

package "Playlist Collections" <<Only the relevant fields are shown>> #LightGray {
  !includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_MODEL
}

This imports the playlists entity definition without duplicating code, showing how moods relate to playlists.

3.4.1. Example Diagrams

Playlists Collections:

Music Database - Playlists Collections ERD

View source on GitHub

View PlantUML source code
@startuml Playlists Collections - Entity Relationship Diagram

title MongoDB Collections: playlist_instances and playlists

!include content/docs/howtos/how-to-write-plantuml/database/db_theme_standard.puml

' PLAYLIST_MODEL
!startsub PLAYLIST_MODEL
ENTITY playlists {
  PK _id : ObjectId
  --
  + IDX reference_code : string
  + IDX is_featured : bool
  + IDX must_tag_moods_at : datetime|null
}
!endsub

!startsub PLAYLIST_MODEL_DETAILS
ENTITY playlists {
  # moods : ObjectId[]
  # locale : string
  # title : string
  # description : string
  # genre : string
  # theme : string
  # target_audience : string
  # moods_tagged_at : datetime|null
  - created_at : datetime
  - updated_at : datetime
  __Indexes__
  SPARSE is_featured_reference_code_idx(is_featured ASC, reference_code ASC)
  SPARSE must_tag_moods_at_idx (must_tag_moods_at ASC)
}
!endsub

' PLAYLIST_INSTANCES_MODEL
!startsub PLAYLIST_INSTANCES_MODEL

ENTITY playlist_instances {
  PK _id : ObjectId
  --
  + IDX instance_urn : string
  + IDX playlist : Link[playlists]
  + IDX playlist_urn : string
  + IDX has_moods : bool
  + IDX is_published : bool
}

' Relationships
playlist_instances ||--o{ playlists : "playlist_id"

!endsub

!startsub PLAYLIST_INSTANCES_MODEL_DETAILS
ENTITY playlist_instances {
uuid : UUID
is_moods_based_suggestion : bool
-created_at : datetime
-updated_at : datetime
__Indexes__
IDX playlist_id_idx(playlist.$id ASC)
IDX instance_urn_has_moods_is_published_idx(instance_urn ASC, has_moods ASC, is_published ASC)
UNIQUE playlist_urn_instance_urn_unique_idx(playlist_urn ASC, instance_urn ASC)
}
!endsub


note right of playlists::is_featured_reference_code_idx
  **Index Purpose:**
  Contains playlist data from various music streaming
  platforms. Serves as main source for user suggestions.
end note

note right of playlist_instances::playlist_urn_instance_urn_unique_idx
  **Index Purpose:**
  Featured playlists catalogue with shared
  information across multiple playlist versions.
  Master template for mood tagging reference.
end note

note bottom of playlists
  **Relationship Pattern:**
  One featured_playlist can be associated with multiple playlist records
  playlist_instances.playlist.$id  playlist._id
end note

@enduml

Moods Collections:

Music Database - Moods Collections ERD

View source on GitHub

View PlantUML source code
@startuml Moods Collections - Entity Relationship Diagram

title MongoDB Collections: Moods taxonomy and related collections - Entity Relationship Diagram

!include content/docs/howtos/how-to-write-plantuml/database/db_theme_standard.puml


package "Playlist Collections" <<Only the relevant fields are shown>> #LightGray {
  !includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_MODEL
}
!startsub MODEL_USER_TASTES
ENTITY user_tastes {
  PK _id : ObjectId
  --
  + user_urn : string
  + instance_urn : string
  + has_moods : boolean
  moods_ids : ObjectId[]
}
!endsub

!startsub MODEL_USER_TASTES_DETAILS
ENTITY user_tastes {
DETAILS created_at : datetime
DETAILS updated_at : datetime
__Indexes__
UNIQUE_SPARSE user_urn_unique_idx(user_urn ASC)
SPARSE instance_urn_has_moods_idx(instance_urn ASC, has_moods DESC)
}
!endsub

!startsub MODEL_MOOD
ENTITY mood {
PK _id : ObjectId
--
+ name : string
+ vector: float[]
+ vector_cohere: float[]
+ translations : dict<string, string>
}
!endsub

!startsub MODEL_MOOD_DETAILS
ENTITY mood {
__Indexes__
UNIQUE name_unique_idx(name ASC)
SPARSE vector_exists_idx(vector ASC)
}
' Relationships
mood }o--o{ user_tastes : "moods_ids references _id in mood"
mood }o-r-o{ playlists : "moods references _id in mood"
!endsub

note left of mood::name
  The name of the mood in English
  (e.g., "energetic", "chill", "melancholic")
end note
note left of mood::translations
  A dictionary containing translations
  of the mood name in various languages.
  The keys are BCP-47 language (e.g., "fr" for French)
  and the values are the translated mood names.
end note
note right of mood::vector
  A vector representation of the mood.name field,
  generated using amazon.titan-embed-text-v1.
  This field is used for semantic search and
  similarity comparisons between moods.
end note

@enduml

Suggestions Collections:

Music Database - Suggestions Collections ERD

View source on GitHub

View PlantUML source code
@startuml Suggestions Collections - Entity Relationship Diagram

title MongoDB Collections: Suggestion System - Entity Relationship Diagram
!include content/docs/howtos/how-to-write-plantuml/database/db_theme_standard.puml

package "Playlist Collections" <<Only the relevant fields are shown>> as PC #LightGray {
  !includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_MODEL
  !includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_INSTANCES_MODEL
}

package "User Collections" <<Only the relevant fields are shown>> as UC #LightGray{
  !includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Moods_Collections_ERD.puml!MODEL_USER_TASTES
}

!startsub MODEL_PENDING_USER_SUGGESTION
ENTITY pending_user_suggestion {
  PK _id : ObjectId
  --
  + IDX user_tastes_id: ObjectId
  + IDX playlist_instances_id : ObjectId
  + IDX computed_at : datetime
  user_urn : string
  user_moods : ObjectId[]
  playlist_urn : string
  playlist_uuid : UUID
  playlist_moods : ObjectId[]
  playlist_instance_is_suggestible : bool
  instance_urn : string
}
!endsub

!startsub MODEL_PENDING_USER_SUGGESTION_DETAILS
ENTITY pending_user_suggestion {
  __Indexes__
  UNIQUE user_tastes_playlist_instances_unique_idx(user_tastes_id ASC, playlist_instances_id ASC)
  IDX compute_at_idx(computed_at ASC)
  IDX playlist_instances_idx(playlist_instances_id ASC)
}
!endsub

!startsub MODEL_USER_SUGGESTION
ENTITY user_suggestion {
  PK _id : ObjectId
  --
  +user_tastes_id: ObjectId
  +user_urn : string
  +playlist_instances_id : ObjectId
  +playlist_instance_is_suggestible : bool
  +score : float
  playlist_urn : string
  playlist_uuid : UUID
  instance_urn : string
  computed_at : datetime
}

' Relationships
user_tastes ||--o{ pending_user_suggestion
playlist_instances ||--o{ pending_user_suggestion
user_tastes ||-d-o{ user_suggestion
playlist_instances ||-u-o{ user_suggestion

!endsub

!startsub MODEL_USER_SUGGESTION_DETAILS
ENTITY user_suggestion {
  __Indexes__
  UNIQUE user_tastes_playlist_instances_unique_idx(user_tastes_id ASC, playlist_instances_id ASC)
  IDX user_tastes_score_idx(user_tastes_id ASC, score DESC)
  IDX playlist_instances_idx(playlist_instances_id ASC)
  IDX user_urn_is_suggestible_score_idx(user_urn ASC, playlist_instance_is_suggestible DESC, score DESC)
}
!endsub
@enduml

4. Master Diagram: music-db-All_collections.puml

The music-db-All_collections.puml file demonstrates diagram composition by combining all subsections into a complete database schema view.

4.1. How It Works

@startuml
!pragma layout smetana
!include content/docs/howtos/how-to-write-plantuml/database/db_theme_standard.puml

' Include playlist entities
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_MODEL
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_MODEL_DETAILS

' Include mood entities
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Moods_Collections_ERD.puml!MODEL_MOOD
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Moods_Collections_ERD.puml!MODEL_MOOD_DETAILS

' ... and so on for all collections
@enduml

4.2. Advantages

  • Single comprehensive view of the entire database
  • No code duplication - entities defined once in source files
  • Automatic updates - changes propagate from source diagrams
  • Flexible composition - easily add/remove collections

This pattern is perfect for creating both detailed individual diagrams and high-level overview diagrams from the same source.

4.2.1. Master Diagram View

Music Database - All Collections

View source on GitHub

View complete PlantUML source code
@startuml
!pragma layout smetana
!include content/docs/howtos/how-to-write-plantuml/database/db_theme_standard.puml
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_MODEL
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_MODEL_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_INSTANCES_MODEL
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Playlists_Collections_ERD.puml!PLAYLIST_INSTANCES_MODEL_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Moods_Collections_ERD.puml!MODEL_USER_TASTES
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Moods_Collections_ERD.puml!MODEL_USER_TASTES_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Moods_Collections_ERD.puml!MODEL_MOOD
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Moods_Collections_ERD.puml!MODEL_MOOD_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Suggestions_Collections_ERD.puml!MODEL_PENDING_USER_SUGGESTION
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Suggestions_Collections_ERD.puml!MODEL_PENDING_USER_SUGGESTION_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Suggestions_Collections_ERD.puml!MODEL_USER_SUGGESTION
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Suggestions_Collections_ERD.puml!MODEL_USER_SUGGESTION_DETAILS
!includesub content/docs/howtos/how-to-write-plantuml/database/music-db-Logs.puml!MODEL_MUSIC_API_LOGS
@enduml

5. JSON Data Structures in PlantUML

PlantUML supports embedding JSON notation directly in diagrams, useful for documenting:

  • API request/response structures
  • Database document schemas (MongoDB)
  • Configuration examples
  • Data transformation flows

5.1. Example from music-db-Logs.puml

json payload as "**Payload Example**" {
  "**field**": "title",
  "**value**": "Summer Vibes Mix",
  "**fallback_locale**": "en-US"
}
music_api_logs -r-> payload: payload

This creates a formatted JSON box linked to an entity, showing exactly what data structure is used.

5.2. Complete Document Example

The logs diagram also shows a complete MongoDB document:

json complete_example as "**Complete Document Example**" {
    "**_id**": "698ddd946f3bad1915a67e87",
    "**instance_urn**": "urn:music:spotify",
    "**user_urn**": "urn:music:spotify:user/...",
    "**tag**": "music-ai.playlist_metadata.generate",
    "**payload**": {
        "**field**": "description",
        "**playlist_title**": "Acoustic Coffee House",
        "**additional_metadata**": { "..." }
    },
    "**prediction**": ["..."]
}

5.3. Benefits

  • Precise schema documentation alongside ERD diagrams
  • Visual clarity - readers see exact data structures
  • Version control - schema examples tracked with diagrams
  • Testing reference - developers can use examples for test data

5.4. Complete Logs Diagram Example

Here’s the complete logs diagram showing JSON structures and their relationships:

Music Database - Logs

View source on GitHub

View PlantUML source code
@startuml

title MongoDB Collections: Music API Logs - Entity Relationship Diagram
!include content/docs/howtos/how-to-write-plantuml/database/db_theme_standard.puml

!startsub MODEL_MUSIC_API_LOGS
ENTITY music_api_logs {
  PK _id : ObjectId
  --
  + instance_urn : string
  user_urn : string
  + created_at : datetime
  tag : string
  target_field : string
  payload : dict
  prediction : array
}

json payload_schema as "**Payload Schema**" {
  "**field**": "enum(description|theme|target_audience)",
  "**playlist_title**": "string",
  "**fallback_locale**": "en-US",
  "**additional_metadata**": {
    "**description**": "string",
    "**theme**": "string",
    "**target_audience**": "string"
  },
  "**example**": "string"
}
music_api_logs --> payload_schema: payload schema

!endsub

!startsub MODEL_MUSIC_API_LOGS_DETAILS
ENTITY music_api_logs {
  __Indexes__
  IDX ttl_idx_90(created_at ASC)
  IDX instance_urn_created_at_idx(instance_urn ASC, created_at DESC)
}

note left of music_api_logs::ttl_idx_90
  **Index Purpose:**
  Automatically delete documents after a certain
  period (e.g., 90 days) to manage storage and
  ensure data relevance.
  **expireAfterSeconds:**  7776000 (90 days)
end note

json payload as "**Payload Example**" {
  "**field**": "title",
  "**value**": "Summer Vibes Mix",
  "**fallback_locale**": "en-US"
}
music_api_logs -r-> payload: payload

json prediction as "**Prediction Example**" {
  [
    "Feel-Good Summer Playlist",
    "Sunshine & Good Times",
    "Ultimate Summer Anthems"
  ]
}
music_api_logs -d-> prediction: prediction

json complete_example as "**Complete Document Example**" {
    "**_id**": "698ddd946f3bad1915a67e87",
    "**instance_urn**": "urn:music:spotify",
    "**user_urn**": "urn:music:spotify:user/DB991B65-1B6F-A942-32BD-4558C0ED7AF4",
    "**tag**": "music-ai.playlist_metadata.generate",
    "**target_field**": "description",
    "**payload**": {
        "**field**": "description",
        "**playlist_title**": "Acoustic Coffee House",
        "**fallback_locale**": "en-US",
        "**additional_metadata**": {
            "**description**": "Warm acoustic sounds perfect for your morning coffee. Featuring indie folk, singer-songwriter gems **(truncated...)**",
            "**theme**": null,
            "**target_audience**": null
        },
        "**example**": "ex: Discover fresh indie folk tracks to elevate your coffee ritual **(truncated...)**"
    },
    "**prediction**": [
      "Cozy acoustic melodies and indie folk favorites to accompany your coffee break **(truncated...)**"
    ],
    "**created_at**": "2026-02-12T14:03:00.928Z"
}
music_api_logs --> complete_example


!endsub
@enduml

3 - How to Write Dockerfiles

Best practices for writing efficient and secure Dockerfiles

1. Dockerfile best practices

Follow official best practices and you can follow these specific best practices

  • But The worst so-called “best practice” for Docker

    Backup, explains why you should actually also use apt-get upgrade

  • Use hadolint

  • Use ;\ to separate each command line

    • some Dockerfiles are using && to separate commands in the same RUN instruction (I was doing it too ;-), but I strongly discourage it because it breaks the checks done by set -o errexit
    • set -o errexit makes the whole RUN instruction to fail if one of the commands has failed, but it is not the same when using &&
  • One package by line, packages sorted alphabetically to ease readability and merges

  • Always specify the most exact version possible of your packages (to avoid to get major version that would break your build or software)

  • do not usage docker image with latest tag, always specify the right version to use

2. Basic best practices

2.1. Best Practice #1: Merge the image layers

in a Dockerfile each RUN command will create an image layer.

2.1.1. Bad practice #1

Here a bad practice that you shouldn’t follow

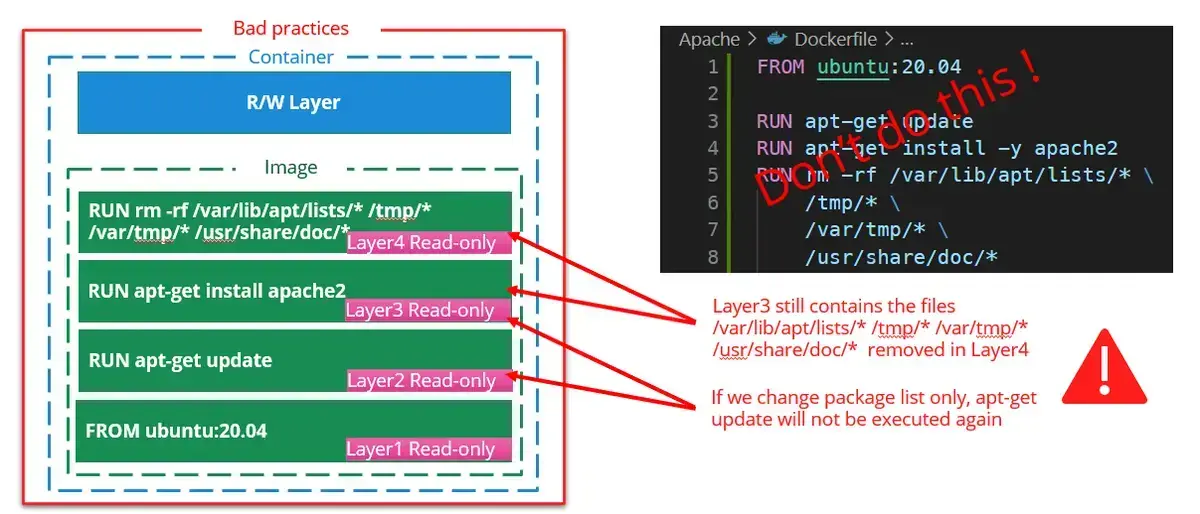

avoid layer cache issue

2.1.2. Best practice #1

Best practice #1 merge the RUN layers to avoid cache issue and gain on total image size

FROM ubuntu:20.04

RUN apt-get update \
    && apt-get install -y apache2 \
    && rm -rf \
        /var/lib/apt/lists/* \
        /tmp/* \
        /var/tmp/* \
        /usr/share/doc/*

2.2. Best Practice #2: trace commands and fail on error

from previous example we want to trace each command that is executed

2.2.1. Bad practice #2

when building complex layer and one of the command fails, it’s interesting to know which command makes the build to fail

FROM ubuntu:20.04

RUN apt-get update \
    && [ -d badFolder ] \
    && apt-get install -y apache2 \
    && rm -rf \
          /var/lib/apt/lists/* \
          /tmp/* \
          /var/tmp/* \
          /usr/share/doc/*

docker build .  gives the following log output(partly truncated):

...
#5 [2/2] RUN apt-get update
    && [ -d badFolder ]
    && apt-get install -y apache2
    && rm -rf
      /var/lib/apt/lists/*
      /tmp/*
      /var/tmp/*
      /usr/share/doc/*
#5 3.818 Get:1 http://archive.ubuntu.com/ubuntu focal InRelease [265 kB]
...
#5 6.252 Fetched 25.6 MB in 6s (4417 kB/s)
#5 6.252 Reading package lists...
#5 ERROR: process "/bin/sh -c apt-get update
  && [ -d badFolder ]
  && apt-get install -y apache2
  && rm -rf
    /var/lib/apt/lists/*
    /tmp/*
    /var/tmp/*
    /usr/share/doc/*"
did not complete successfully: exit code: 1
------
> [2/2] RUN apt-get update
  && [ -d badFolder ]
  && apt-get install -y apache2
  && rm -rf
    /var/lib/apt/lists/*
    /tmp/*
    /var/tmp/*
    /usr/share/doc/*:
#5 5.383 Get:10 http://archive.ubuntu.com/ubuntu focal/main amd64 Packages [1275 kB]
...

------
Dockerfile1:3
--------------------
  2 |
  3 | >>> RUN apt-get update \
  4 | >>>     && [ -d badFolder ] \
  5 | >>>     && apt-get install -y apache2 \
  6 | >>>     && rm -rf \
  7 | >>>           /var/lib/apt/lists/\* \
  8 | >>>           /tmp/\* \
  9 | >>>           /var/tmp/\* \
  10 | >>>           /usr/share/doc/\*
  11 |
--------------------
ERROR: failed to solve: process "/bin/sh -c apt-get update
  && [ -d badFolder ]
  && apt-get install -y apache2
  && rm -rf
    /var/lib/apt/lists/*
    /tmp/*
    /var/tmp/*
    /usr/share/doc/*
did not complete successfully: exit code: 1

Not easy here to know that the command [ -d badFolder ] makes the build failing

Without the best practice #2, the following code build successfully

FROM ubuntu:20.04

RUN set -x ;\
    apt-get update ;\
    [ -d badFolder ] ;\
    ls -al

2.2.2. Best Practice #2

Best Practice #2: Override SHELL options of the RUN command and use ;\ instead of &&

The following options are set on the shell to override the default behavior:

  • set -o pipefail: The return status of a pipeline is the exit status of the last command, unless the pipefail option is enabled.
    • If pipefail is enabled, the pipeline’s return status is the value of the last (rightmost) command to exit with a non-zero status, or zero if all commands exit successfully.
    • without it, a command failure could be masked by the command piped after it
  • set -o errexit (same as set -e): Exit immediately if a pipeline (which may consist of a single simple command), a list, or a compound command (see SHELL GRAMMAR above), exits with a non-zero status.
  • set -o xtrace(same as set -x):  After  expanding  each  simple  command, for command, case command, select command, or arithmetic for command, display the expanded value of PS4, followed by the command and its expanded arguments or associated word list.

Those options are not mandatory but are strongly advised. Although there are some workaround to know:

  • if a command can fail and you want to ignore it, you can use
    • commandThatCanFail || true

These options can be used with /bin/sh as well.

Also it is strongly advised to use ;\ to separate commands because it could happen that some errors are ignored when && is used in conjunction with ||

FROM ubuntu:20.04

# The SHELL instructions will be applied to all the subsequent RUN instructions
SHELL ["/bin/bash", "-o", "pipefail", "-o", "errexit", "-o", "xtrace", "-c"]
RUN apt-get update ;\
    [ -d  badFolder ] ;\
    apt-get install -y apache2 ;\
    rm -rf \
          /var/lib/apt/lists/* \
          /tmp/* \
          /var/tmp/* \
          /usr/share/doc/*

docker build .  gives the following log output(partly truncated):

...
#5 [2/2] RUN apt-get update ;
  [ -d  badFolder ] ;
  apt-get install -y apache2 ;
  rm -rf
    /var/lib/apt/lists/*
    /tmp/*
    /var/tmp/*
    /usr/share/doc/*
#5 0.318 + apt-get update
#5 3.522 Get:1 http://archive.ubuntu.com/ubuntu focal InRelease [265 kB]
...
#5 5.310 Fetched 25.6 MB in 5s (5141 kB/s)
#5 5.310 Reading package lists...
#5 6.172 + '[' -d badFolder ']'
#5 ERROR: process "/bin/bash -o pipefail -o errexit -o xtrace -c
  apt-get update ;
  [ -d  badFolder ] ;
  apt-get install -y apache2 ;
  rm -rf
    /var/lib/apt/lists/*
    /tmp/*
    /var/tmp/*
    /usr/share/doc/*
did not complete successfully: exit code: 1
------
 > [2/2] RUN apt-get update ;
  [ -d  badFolder ] ;
  apt-get install -y apache2 ;
  rm -rf
    /var/lib/apt/lists/*
    /tmp/*
    /var/tmp/*
    /usr/share/doc/\*:
#5 4.228 Get:11 http://archive.ubuntu.com/ubuntu focal-updates/main amd64 Packages [3014 kB]
...
#5 6.172 + '[' -d badFolder ']'
------
Dockerfile1:4
--------------------
   3 |     SHELL ["/bin/bash", "-o", "pipefail", "-o", "errexit", "-o", "xtrace", "-c"]
   4 | >>> RUN apt-get update ;\
   5 | >>>     [ -d  badFolder ] ;\
   6 | >>>     apt-get install -y apache2 ;\
   7 | >>>     rm -rf \
   8 | >>>           /var/lib/apt/lists/\* \
   9 | >>>           /tmp/\* \
  10 | >>>           /var/tmp/\* \
  11 | >>>           /usr/share/doc/\*
  12 |
--------------------
ERROR: failed to solve: process "/bin/bash -o pipefail -o errexit -o xtrace -c
apt-get update ;    [ -d  badFolder ] ;    apt-get install -y apache2 ;    rm -rf
/var/lib/apt/lists/*         /tmp/*         /var/tmp/*         /usr/share/doc/*"
did not complete successfully: exit code: 1

Here the command line displayed just above the error indicates clearly from where the error comes from:

#5 6.172 + '[' -d badFolder ']'

2.3. Best practice #3: packages ordering and versions

Best Practice #3: order packages alphabetically, always specify packages versions, ensure non interactive

From previous example we want to install several packages

2.3.1. Bad practice #3

let’s add some packages on our previous example (errors removed)

The following docker has the following issues:

  • it doesn’t set the package versions
  • the installation will install also the recommended packages
  • it’s using apt instead of apt-get (hadolint warning DL3027 Do not use apt as it is meant to be a end-user tool, use apt-get or apt-cache instead)
  • the packages are not ordered alphabetically
FROM ubuntu:20.04

SHELL ["/bin/bash", "-o", "pipefail", "-o", "errexit", "-o", "xtrace", "-c"]
RUN apt update ;\
    apt install -y php7.4 apache2 php7.4-curl redis-tools ;\
    rm -rf \
          /var/lib/apt/lists/* \
          /tmp/* \
          /var/tmp/* \
          /usr/share/doc/*

2.3.2. Best Practice #3

Best Practice #3: order packages alphabetically, always specify packages versions, ensure non interactive

2.3.2.1. Order packages alphabetically and one package by line

one package by line allows packages to be simpler ordered alphabetically

one package by line and ordering alphabetically allows :

  • to merge branches changes more easily
  • to detect redundancies more easily
  • to improve readability
2.3.2.2. Always specify packages versions

over the time your build’s dependencies could be updated on the remote repositories and your packages be unattended upgraded to the latest version making your software breaks because it doesn’t manage the changes of the new package.

It happens several times for me, for example, in 2021, xdebug has been automatically upgraded on one of my docker image from version 2.8 to 3.0 making all the dev environments broken. It happens also on a build pipeline with a version of npm gulp that has been upgraded to latest version. In both cases we resolved the issue by downgrading the version to the one we were using.

2.3.2.3. Ensure non interactive

some apt-get packages could ask for interactive questions, you can avoid this using the env variable DEBIAN_FRONTEND=noninteractive

Note: ARG instruction allows to set env variable available only during build time

FROM ubuntu:20.04

SHELL ["/bin/bash", "-o", "pipefail", "-o", "errexit", "-o", "xtrace", "-c"]

ARG DEBIAN_FRONTEND=noninteractive
RUN apt-get update ;\
    apt-get install -y -q --no-install-recommends \
        # Mind to use quotes to avoid shell to try to expand * with some files
        apache2='2.4.*' \
        php7.4='7.4.*' \
        php7.4-curl='7.4.*' \
        # Notice the ':'(colon)
        redis-tools='5:5.*' \
    ;\
    # cleaning
    apt-get autoremove -y ;\
    apt-get -y clean ;\
    rm -rf \
        /var/lib/apt/lists/* \
        /tmp/* \
        /var/tmp/* \
        /usr/share/doc/*

# use the following command to know the current version of the packages
# using another RUN instead of using previous one will avoid the whole
# previous layer to be rebuilt
# RUN apt-cache policy \
# apache2 \
# php7.4 \
# php7.4-curl \
# redis-tools
# Gives the following output
#6 0.387 + apt-cache policy apache2
#6 0.399 apache2:
#6 0.399   Installed: 2.4.41-4ubuntu3.14
#6 0.399   Candidate: 2.4.41-4ubuntu3.14
#6 0.399   Version table:
#6 0.399  *** 2.4.41-4ubuntu3.14 100
#6 0.399         100 /var/lib/dpkg/status
#6 0.400 + apt-cache policy php7.4
#6 0.409 php7.4:
#6 0.409   Installed: 7.4.3-4ubuntu2.18
#6 0.409   Candidate: 7.4.3-4ubuntu2.18
#6 0.409   Version table:
#6 0.409  *** 7.4.3-4ubuntu2.18 100
#6 0.409         100 /var/lib/dpkg/status
#6 0.409 + apt-cache policy php7.4-curl
#6 0.420 php7.4-curl:
#6 0.420   Installed: 7.4.3-4ubuntu2.18
#6 0.420   Candidate: 7.4.3-4ubuntu2.18
#6 0.420   Version table:
#6 0.420  *** 7.4.3-4ubuntu2.18 100
#6 0.421         100 /var/lib/dpkg/status
#6 0.421 + apt-cache policy redis-tools
#6 0.431 redis-tools:
#6 0.431   Installed: 5:5.0.7-2ubuntu0.1
#6 0.431   Candidate: 5:5.0.7-2ubuntu0.1
#6 0.431   Version table:
#6 0.431  *** 5:5.0.7-2ubuntu0.1 100
#6 0.432         100 /var/lib/dpkg/status

2.4. Best practice #4: ensure image receives latest security updates

from previous example we want to ensure the image receives the latest security updates

2.4.1. Bad practice #4

registry image are not always updated and latest apt security updates are not installed

FROM ubuntu:20.04

SHELL ["/bin/bash", "-o", "pipefail", "-o", "errexit", "-o", "xtrace", "-c"]

ARG DEBIAN_FRONTEND=noninteractive
RUN apt-get update ;\
    apt-get install -y -q --no-install-recommends \
        apache2='2.4.*' \
        php7.4='7.4.*' \
        php7.4-curl='7.4.*' \
        redis-tools='5:5.*' \
    ;\
    # cleaning
    apt-get autoremove -y ;\
    apt-get -y clean ;\
    rm -rf \
        /var/lib/apt/lists/* \
        /tmp/* \
        /var/tmp/* \
        /usr/share/doc/*

2.4.2. Best Practice #4

be sure to apply latest security updates, to install the latest security updates in the image, keep sure to call apt-get upgrade -y

Here the updated Dockerfile:

FROM ubuntu:20.04

SHELL ["/bin/bash", "-o", "pipefail", "-o", "errexit", "-o", "xtrace", "-c"]

ARG DEBIAN_FRONTEND=noninteractive
RUN apt-get update ;\
    # be sure to apply latest security updates
    # https://pythonspeed.com/articles/security-updates-in-docker/
    apt-get upgrade -y ;\
    apt-get install -y -q --no-install-recommends \
        apache2='2.4.*' \
        php7.4='7.4.*' \
        php7.4-curl='7.4.*' \
        redis-tools='5:5.*' \
    ;\
    # cleaning
    apt-get autoremove -y ;\
    apt-get -y clean ;\
    rm -rf \
        /var/lib/apt/lists/* \
        /tmp/* \
        /var/tmp/* \
        /usr/share/doc/*

2.5. Conclusion: image size comparison

from previous example we want to ensure the image receives the latest security updates

2.5.1. Dockerfile without best practices

FROM ubuntu:20.04

ARG DEBIAN_FRONTEND=noninteractive
RUN apt-get update
RUN apt-get install -y apache2 php7.4 php7.4-curl redis-tools
# cleaning
RUN apt-get autoremove -y ;\
    apt-get -y clean ;\
    rm -rf \
        /var/lib/apt/lists/* \
        /tmp/* \
        /var/tmp/* \
        /usr/share/doc/*

2.5.2. Dockerfile with all optimizations

FROM ubuntu:20.04

SHELL ["/bin/bash", "-o", "pipefail", "-o", "errexit", "-o", "xtrace", "-c"]

ARG DEBIAN_FRONTEND=noninteractive
RUN apt-get update ;\
    apt-get upgrade -y ;\
    apt-get install -y -q --no-install-recommends \
        apache2='2.4.*' \
        php7.4='7.4.*' \
        php7.4-curl='7.4.*' \
        redis-tools='5:5.*' \
    ;\
    # cleaning
    apt-get autoremove -y ;\
    apt-get -y clean ;\
    rm -rf \
        /var/lib/apt/lists/* \
        /tmp/* \
        /var/tmp/* \
        /usr/share/doc/*

3. Docker Buildx best practices

3.1. Optimize image size

Source: https://askubuntu.com/questions/628407/removing-man-pages-on-ubuntu-docker-installation

Let’s consider this example

3.1.1. Dockerfile not optimized

FROM ubuntu:20.04 as stage1

ARG DEBIAN_FRONTEND=noninteractive

SHELL ["/bin/bash", "-o", "pipefail", "-o", "errexit", "-o", "xtrace", "-c"]
RUN \
    apt-get update ;\
    apt-get install -y -q --no-install-recommends \
        htop

FROM stage1 as stage2

SHELL ["/bin/bash", "-o", "pipefail", "-o", "errexit", "-o", "xtrace", "-c"]
RUN \
    # here we just test that the ARG DEBIAN_FRONTEND has been inherited from
    # previous stage (it is the case)
    echo "DEBIAN_FRONTEND=${DEBIAN_FRONTEND}"

Now let’s build and check the image size, the best way to do this is to export the image to a file

docker build and save:

docker build -f Dockerfile1 -t test1 .
docker save test1 -o test1.tar

Now we will optimize this image by removing man pages (you can still find man pages on the web) and removing apt cache

3.1.2. Dockerfile optimized

FROM ubuntu:20.04 as stage1

ARG DEBIAN_FRONTEND=noninteractive

COPY 01-noDoc /etc/dpkg/dpkg.cfg.d/

COPY 02-aptNoCache /etc/apt/apt.conf.d/
SHELL ["/bin/bash", "-o", "pipefail", "-o", "errexit", "-o", "xtrace", "-c"]
RUN \
    # remove apt cache and man/doc
    rm -rf /var/cache/apt/archives /usr/share/{doc,man,locale}/ ;\
    \
    apt-get update ;\
    apt-get install -y -q --no-install-recommends \
        htop \
    ;\
    # clean apt packages
    apt-get autoremove -y ;\
    ls -al /var/cache/apt ;\
    rm -rf /var/lib/apt/lists/* /tmp/* /var/tmp/* /usr/share/doc/*

FROM stage1 as stage2

SHELL ["/bin/bash", "-o", "pipefail", "-o", "errexit", "-o", "xtrace", "-c"]
RUN \
    echo "DEBIAN_FRONTEND=${DEBIAN_FRONTEND}"

Here the content of /etc/dpkg/dpkg.cfg.d/01-noDoc, it will tell apt to not install man docs and translations

# /etc/dpkg/dpkg.cfg.d/01_nodoc

# Delete locales
path-exclude=/usr/share/locale/*

# Delete man pages
path-exclude=/usr/share/man/*

# Delete docs
path-exclude=/usr/share/doc/*
path-include=/usr/share/doc/*/copyright

Here the content of /etc/apt/apt.conf.d/02-aptNoCache, it will instruct apt to not store any cache (note that apt-get clean will not work after that change but you don’t need to use it anymore)

Dir::Cache "";
Dir::Cache::archives "";

Now let’s build and check the image size, the best way to do this is to export the image to a file

docker build and save:

docker build -f Dockerfile2 -t test2 .
docker save test2 -o test2.tar

Here the size of the files

test1.tar 117 020 672 bytes
test2.tar  76 560 896 bytes

We passed from ~117MB to ~76MB so we gain ~41MB Please note also that we used --no-install-recommends option in both example that allows us to save some other MB

4 - How to Write Docker Compose Files

Guide to writing and organizing Docker Compose files

1. platform

as not everyone is using the same environment (some are using MacOS for example which is targeting arm64 instead of amd64), it is advised to add this option to target the right architecture

docker-compose platform:

services:
  serviceName:
    platform: linux/x86_64
  # ...

2. Wait for a service to be healthy before starting another one

If you have a service that depends on another one, it is important to wait for the dependent service to be healthy before starting the dependent one. This can be achieved using the depends_on option with the condition: service_healthy condition.

Here is an example where serviceB depends on serviceA being healthy before it starts:

services:
  serviceA:
    # ...
    healthcheck:
      test: [CMD, curl, -f, http://localhost:8080/health]
      interval: 30s
      timeout: 10s
      retries: 3
  serviceB:
    # ...
    depends_on:
      serviceA:
        condition: service_healthy

In this example, api service will wait for the db service to be healthy before it starts. The health check for the db service is defined to check if the MySQL server is responding to ping requests.

version: '2.1'
services:
  api:
    build: .
    container_name: api
    ports:
      - 8080:8080
    depends_on:
      db:
        condition: service_healthy
  db:
    container_name: db
    image: mysql
    ports:
      - '3306'
    environment:
      MYSQL_ALLOW_EMPTY_PASSWORD: yes
      MYSQL_USER: user
      MYSQL_PASSWORD: password
      MYSQL_DATABASE: database
    healthcheck:
      test: [CMD, mysqladmin, ping, -h, localhost]
      timeout: 20s
      retries: 10

5 - Saml2Aws Setup

Guide to setting up and using Saml2Aws for AWS access

Configure saml2aws accounts

saml2aws configure \
  --idp-account='<account_alias>' \
  --idp-provider='AzureAD' \
  --mfa='Auto' \
  --profile='<profile>' \
  --url='https://account.activedirectory.windowsazure.com' \
  --username='<username>@microsoft.com' \
  --app-id='<app_id>' \
  --skip-prompt
  • <app_id> is a unique identifier for the application we want credentials for (in this case an AWS environment).
  • <account_alias> serves as a name to identify the saml2aws configuration (see your ~/.saml2aws file
  • <profile> serves as the name of the aws cli profile that will be created when you log in.

This will automatically identify your tenant ID based on the AppID and will create a configuration based on the provided information. Configuration will be created in ~/.saml2aws

1. Use saml2aws login command to configure the AWS CLI profile

Run saml2aws login to add or refresh your profile for the aws cli.

saml2aws login -a ${account_alias}

Follow the prompts to enter your SSO credentials and complete the multi-factor authentication step.

Note: if you are part of multiple roles you can use –role flag to configure the required role.

Above steps have been taken from below GitHub Repo. They have been tried in MacOS, Windows, Linux and Windows WSL https://github.com/Versent/saml2aws

2. Kubernetes connection

Adding a newly created Technology Convergence EKS cluster to your ~/.kube/config:

Add EKS Cluster to ~/.kube/config

aws eks update-kubeconfig --name $clusterName --region us-east-1

3. Common issues

3.1. Error - error authenticating to IdP: unable to locate IDP OIDC form submit URL

This is very likely because you changed your account password. Reenter your password when prompted at saml2aws login

3.2. Error - error authenticating to IdP: unable to locate SAMLRequest URL

This is very likely because you do not have access to this AWS account.

Multifactor authentication asks for a number, but the terminal doesn’t provide a number.

Solution 1: We’ve found that going to your Microsoft account security info and deleting and re-adding the sign-in method seems to fix the issue. You should then be able to just enter a Time-based one-time password from your Microsoft Authenticator app.

Solution 2: You can change the MFA option for your saml2aws config either with PhoneAppOTP, PhoneAppNotification, or OneWaySMS. Something like this in your ~/.saml2aws file

name          = tc-dev
app_id         = 83cffb56-1d1b-400c-ad47-345c58e378dc
url           = https://account.activedirectory.windowsazure.com
username        = <>@microsoft.com
provider        = AzureAD
mfa           = OneWaySMS
skip_verify       = false
timeout         = 0
aws_urn         = urn:amazon:webservices
aws_session_duration  = 3600
aws_profile       = dev
resource_id       =
subdomain        =
role_arn        =
region         =
http_attempts_count   =
http_retry_delay    =
credentials_file    =
saml_cache       = false
saml_cache_file     =
target_url       =
disable_remember_device = false
disable_sessions    = false
prompter        =

for more reference, follow this page https://github.com/Versent/saml2aws/blob/master/doc/provider/aad/README.md#configure

6 - Debug Hugo

Debug Hugo: Quick guide to locate Hugo templates, use templateMetrics, override priorities, and fix common Docsy/Hugo template issues for faster debugging.

1. Finding Which Template is Being Used

Method 1: Template Metrics (Recommended)

hugo server -D --templateMetrics --templateMetricsHints

This shows which templates are executed and execution times. Look for the page you’re debugging in the output.

Method 2: Add Debug Comments to Templates Add this at the top of any template to verify it’s being used:

<!-- DEBUG: Using template layouts/docs/list.html -->
{{ warnf "TEMPLATE DEBUG: Rendering %s with %s" .RelPermalink .Layout }}

Then check the HTML source or terminal output.

Method 3: Template Path in HTML (Temporary) Add to your template for debugging:

<!-- Template: {{ .Layout }} | Kind: {{ .Kind }} | Type: {{ .Type }} -->
{{ printf "
<!-- File: %s -->
" .File.Path }}

Remove after debugging to keep HTML clean.

2. Hugo Template Lookup Order

For _index.md files (list pages):

content/docs/bash-scripts/_index.md  (with type: docs)
  1. layouts/docs/list.html              ← Create this for docs sections with comments
  2. layouts/docs/section.html
  3. layouts/_default/list.html
  4. layouts/_default/section.html
  5. themes/docsy/layouts/docs/list.html
  6. themes/docsy/layouts/_default/list.html

For regular .md files (single pages):

content/docs/bash-scripts/page.md  (with type: docs)
  1. layouts/docs/single.html            ← Docsy uses baseof.html with blocks
  2. layouts/_default/single.html
  3. layouts/partials/_td-content.html   ← This is where content is rendered in Docsy
  4. themes/docsy/layouts/docs/baseof.html

For blog posts:

content/blog/post.md
  1. layouts/blog/single.html
  2. layouts/_default/single.html
  3. layouts/blog/_td-content.html       ← Override this for blog-specific changes

3. Common Template Debugging Commands

# Verify template exists in lookup path
find . -name "list.html" -o -name "single.html"

# Check if shared layouts are mounted correctly
hugo mod graph

# List all available templates (with jq installed)
hugo config --format json | jq '.module.mounts'

# Rebuild with verbose output
hugo server -D --logLevel debug --disableFastRender

4. Template Override Priority

  1. Local layouts/ directory (highest priority) - repo-specific overrides
  2. Mounted shared/layouts/ from my-documents via Hugo modules
  3. Docsy theme themes/docsy/layouts/ (lowest priority)

5. Key Template Files for Comments/Customization

TemplatePurposeUsed For
shared/layouts/docs/list.htmlDocs section index pages_index.md with type: docs
shared/layouts/blog/_td-content.htmlBlog post content wrapperBlog posts
shared/layouts/_td-content.htmlRegular page content wrapperRegular docs pages
shared/layouts/partials/giscus-comments.htmlGiscus comment widgetIncluded in above templates

6. Common Issues and Solutions

Issue: Comments not showing on _index.md pages
Solution: Create layouts/docs/list.html (not section.html - wrong name!)

Issue: Changes to shared/layouts/ not appearing
Solution: Run hugo mod clean && hugo mod get -u to refresh modules

Issue: Template works locally but not in CI
Solution: Check Hugo modules are committed in go.mod and go.sum

Issue: Wrong template being used
Solution: Check frontmatter type: field - it controls template lookup path

Issue: Print out the full value of a variable in Hugo Solution:

  • {{ printf "%#v" $pages }}
  • <pre>{{ debug.Dump .Params }}</pre>
  • Use the templates.Current function to visually mark template execution boundaries or to display the template call stack.

7. Understanding Docsy’s Template Structure

Docsy uses a block-based template system:

  • baseof.html defines the overall page structure
  • {{ block "main" }} is where content goes
  • _td-content.html partial is called by most layouts
  • Override _td-content.html to customize content rendering globally

8. Quick Debug Workflow

  1. Identify the page type: Regular page, section index, blog post?
  2. Check frontmatter: Look for type: field (e.g., type: docs)
  3. Find template: Use template lookup order above
  4. Verify template exists: Check shared/layouts/[type]/[kind].html
  5. Add debug output: Temporarily add {{ warnf }} to verify
  6. Test locally: hugo server -D --templateMetrics --disableFastRender
  7. Remove debug code: Clean up before committing
